Hyundai Palisade: Power Tailgate Module / PTG Spindle

Hyundai Palisade (LX2) 2020-2024 Service Manual / Body Electrical System / Power Tailgate Module / PTG Spindle

Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the luggage side trim.
(Refer to Body - "Luggage Side Trim")
3.

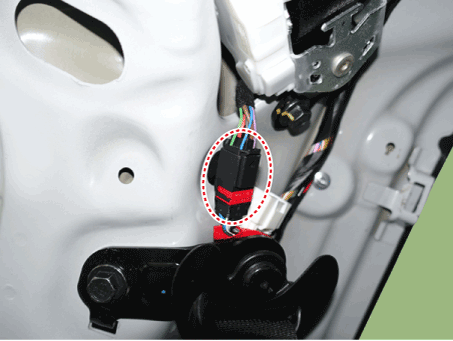

Disconnect the power PTG spindle connector (A).

Hyundai Palisade. Repair procedures

4.

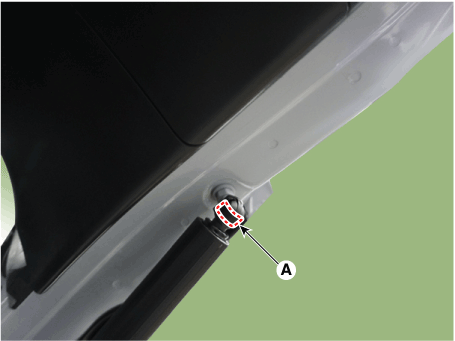

Using a screwdriver , lift up slightly the socket clips (A).
Hyundai Palisade. Repair procedures

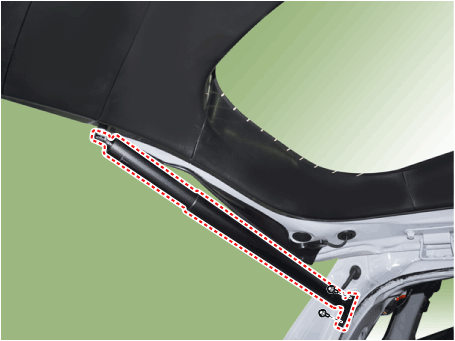

Take care not to be closed the tail gate, when removing the lift.

Hyundai Palisade. Repair procedures

5.
If it is necessary, remove the nuts and replace the PTG spindle bracket (A).

Hyundai Palisade. Repair procedures

Installation
1.
Connect the PTG spindle connector and then install the PTG spindle.
Tightening torque :
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)
2.
Install the tailgate trim and Luggage side trim.
3.
Connect the negative (-) battery terminal.
