Hyundai Palisade (LX2): Power Tailgate Module / Anti-Pinch Strip

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body Electrical System / Power Tailgate Module / Anti-Pinch Strip

Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the tailgate trim.
(Refer to Body - "Tailgate Trim")
3.

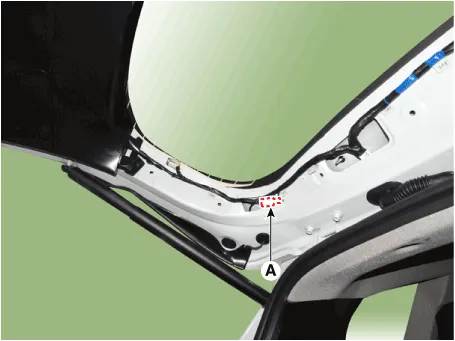

Remove the anti-pinch strip sensor connector (A).

Hyundai Palisade. Repair procedures
4.

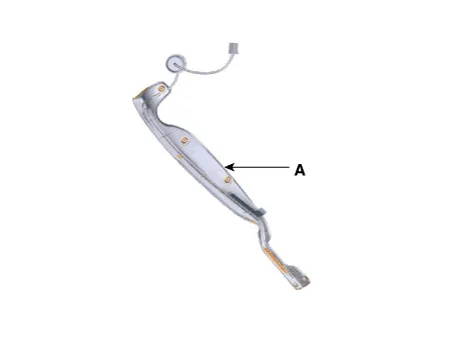

Remove the anti-pinch strip (A) after removing the clips.

Hyundai Palisade. Repair procedures
Installation
1.
Install the tailgate anti-pinch strip.
2.
Install the tailgate trim.
3.
Connect the negative (-) battery terminal.
