Schematic diagrams

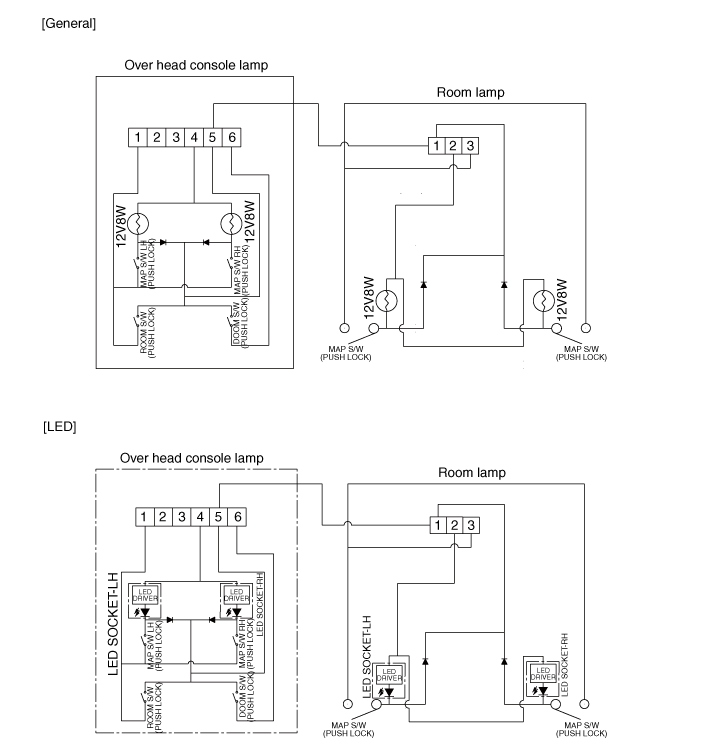

Circuit Diagram

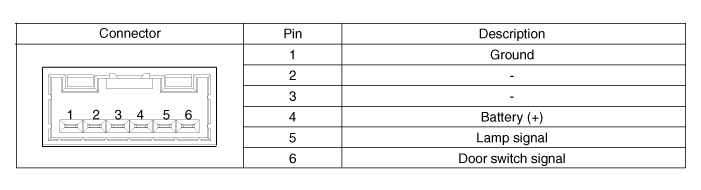

Hyundai Palisade. Schematic diagrams

Repair procedures

Inspection

1.	Remove the overhead console lamp connector (A) then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.

Removal

1.	Disconnect the negative (-) battery terminal.

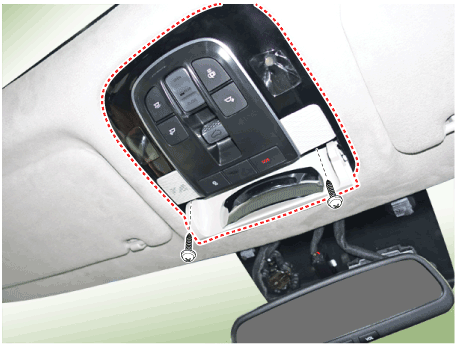

2.	Remove the mounting screws (2EA). And then remove the overhead console.

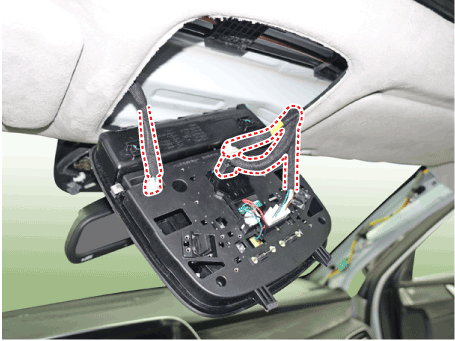

3.	Remove the overhead console after disconnect the connector.

Installation

1.	Install the overhead console lamp after connecting the connector.

2.	Install the lens after tightening 2 screws.
