Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear bumper.
(Refer to Body - "Rear Bumper Cover")
3.

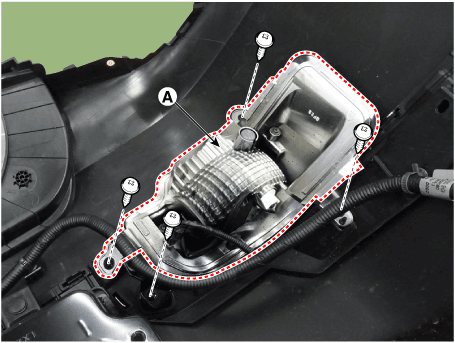

Remove the back up lamp (A) after loosening mounting screws.

Hyundai Palisade. Repair procedures
Installation
1.
Install the back up lamp.
2.
Connect the back up lamp connector.
3.
Install the rear bumper cover.
4.
Connect the negative (-) battery terminal.

    Repair procedures Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the rear combination lamp cover (A) with a flat-tip screwdriver.
