| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Detach the lamp lens (A) from the room lamp with a flat-tip screwdriver.
|
| 3. |

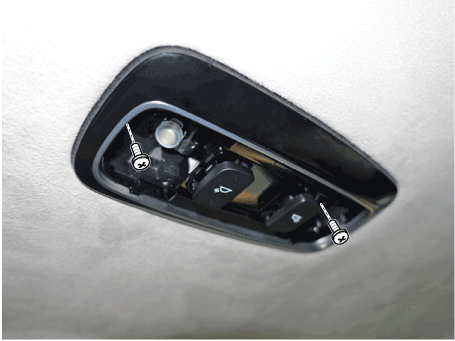

Separate the room lamp from the roof trim after loosening the screws.
|
| 4. |

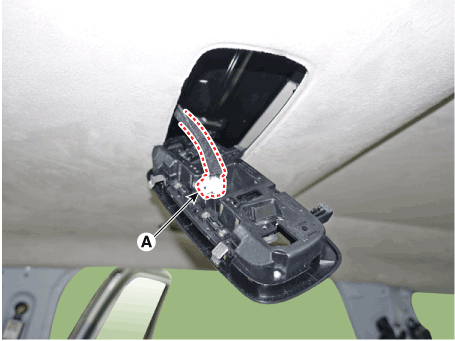

Remove the room lamp after disconnecting the connector (A).
|
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |

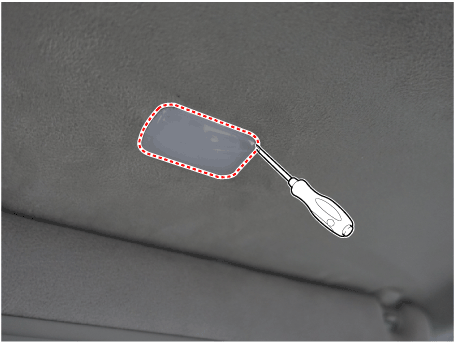

Using a flat-tip screwdriver, remove the vanity lamp.
|
| 3. |

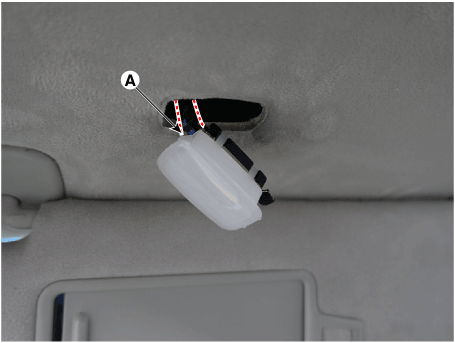

Disconnect the connecotr (A).
|
| Installation |
| 1. |
Install the room lamp after connecting the lamp connector.
|
| 2. |
Connect the negative (-) battery terminal.
|
| 1. |
Install the vanity lamp after connecting the lamp connector.
|
| 2. |
Connect the negative (-) battery terminal.
|
