Hyundai Palisade: Lighting System / High Mounted Stop Lamp

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body Electrical System / Lighting System / High Mounted Stop Lamp

Repair procedures

Removal

High Mounted Stop Lamp

1.	Disconnect the negative (-) battery terminal.

2.	Remove the rear spoiler. (Refer to Body - "Rear Spoiler")

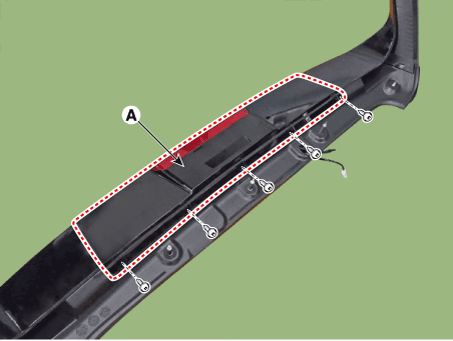

3.	Remove the high mounted stop lamp cover (A).

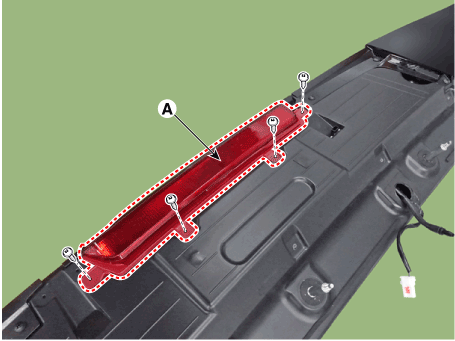

4.	Remove the high mounted stop lamp assembly (A) after loosening screws (4EA).

Installation

1.	Install the high mounted stop lamp.

2.	Install the rear spoiler.

3.	Connect the negative (-) battery terminal.
