Repair procedures
Removal and Installation
Hyundai Palisade. Repair procedures
Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
1.
Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "Engine Cover")
2.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")
3.
Drain the coolant.
(Refer to Cooling System - "Coolant")
4.
Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "Air Cleaner")
5.
Remove the surge tank.
(Refer to Intake and Exhaust System - "Surge Tank")
6.
Remove the intake manifold.
(Refer to Intake And Exhaust System - "Intake Manifold")
7.
Remove the delivery pipe.
(Refer to Engine Control / Fuel System - "Delivery Pipe")
8.
Remove the water temperature control assembly and water center pipe.
(Refer to Cooling System - "Water Temperature Control Assembly")
9.

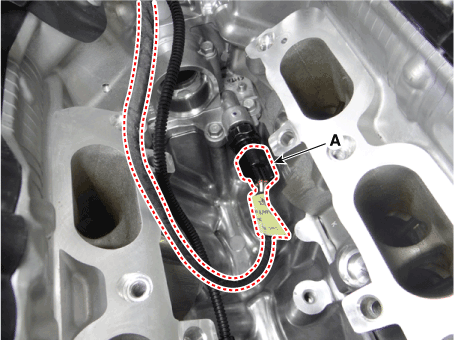

Disconnect the oil pressure sensor connector (A).

Hyundai Palisade. Repair procedures

10.

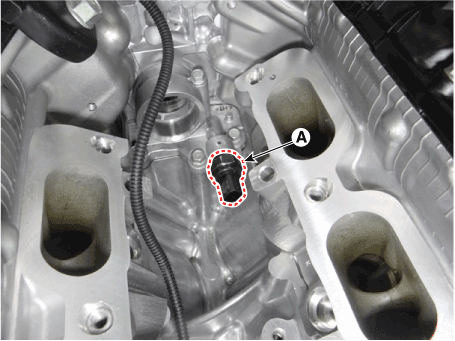

Remove the oil pressure sensor (A).
Tightening torque :
14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.8 - 15.9 lb.ft)

Hyundai Palisade. Repair procedures

11.
Install in the reverse order of removal.
Hyundai Palisade. Repair procedures

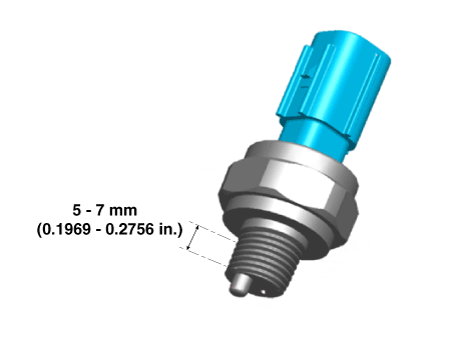

When installing, apply sealant on the thread part.
Seal lock : 3M 2510
Thickness : More than 0.4 mm (0.0157 in.)

Hyundai Palisade. Repair procedures
