Hyundai Palisade (LX2) 2020-2025 Owner's Manual / Maintenance / Fuses / Fuse/Relay Panel Description

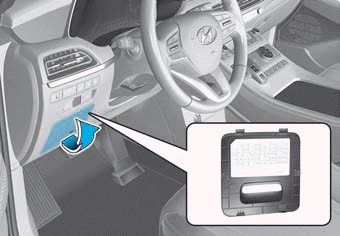

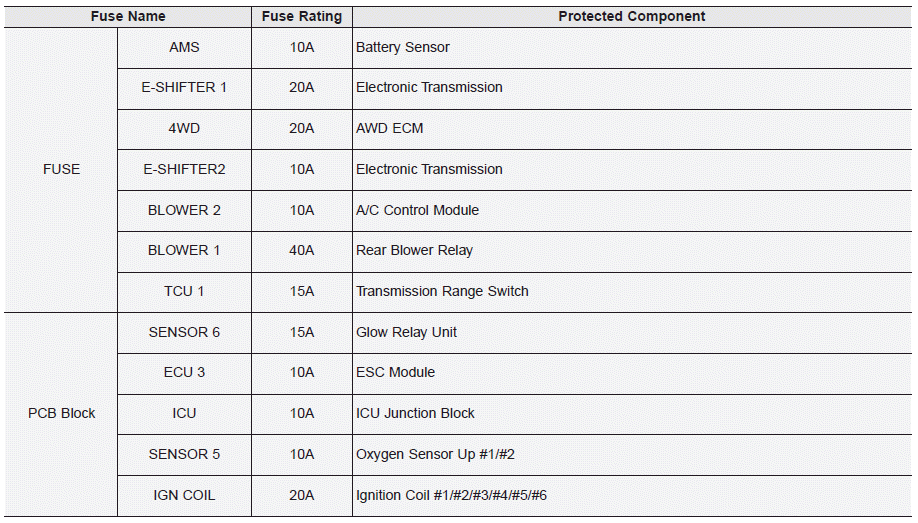

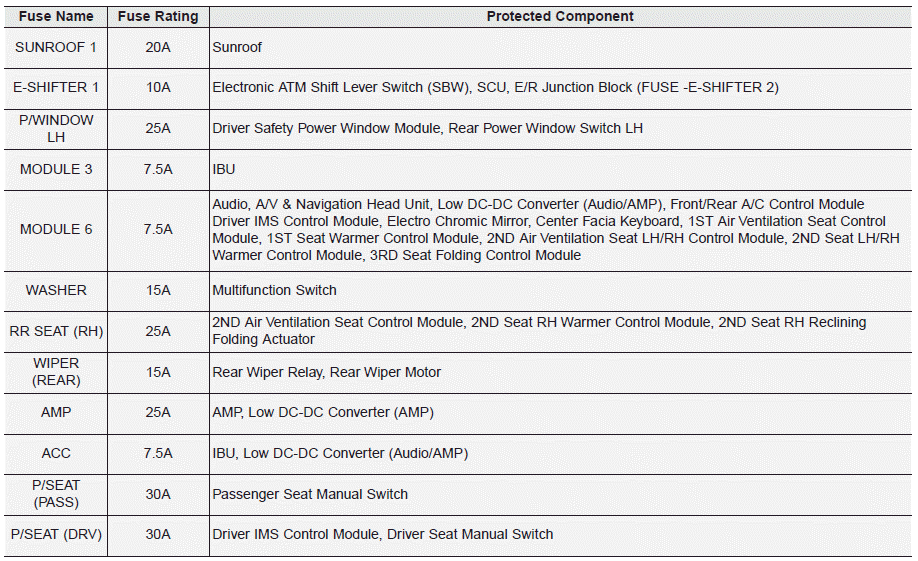

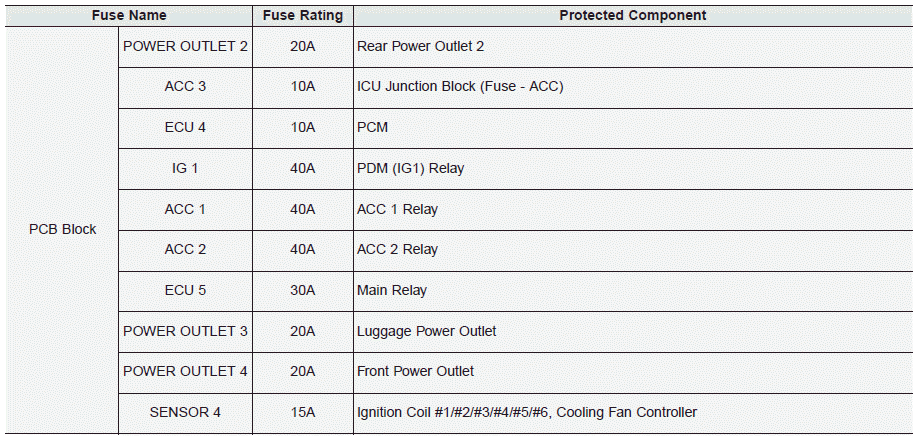

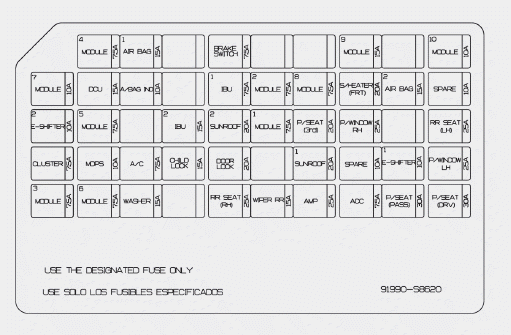

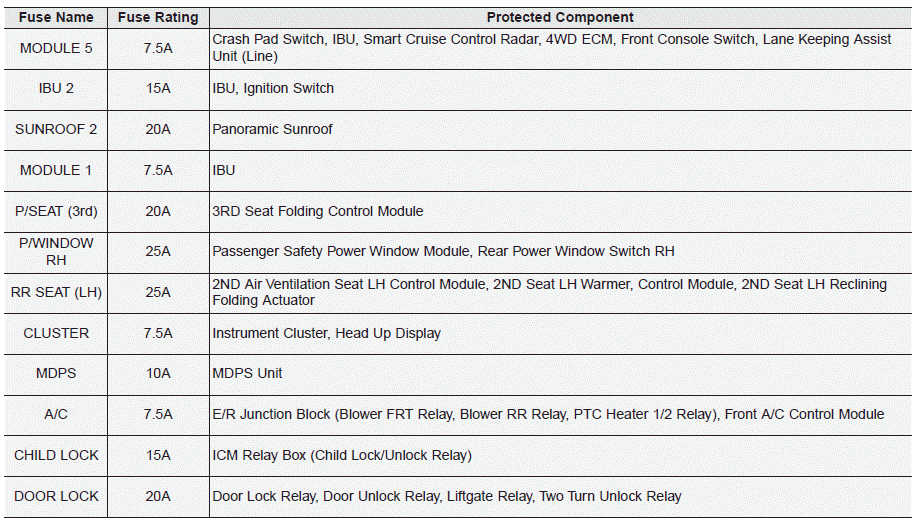

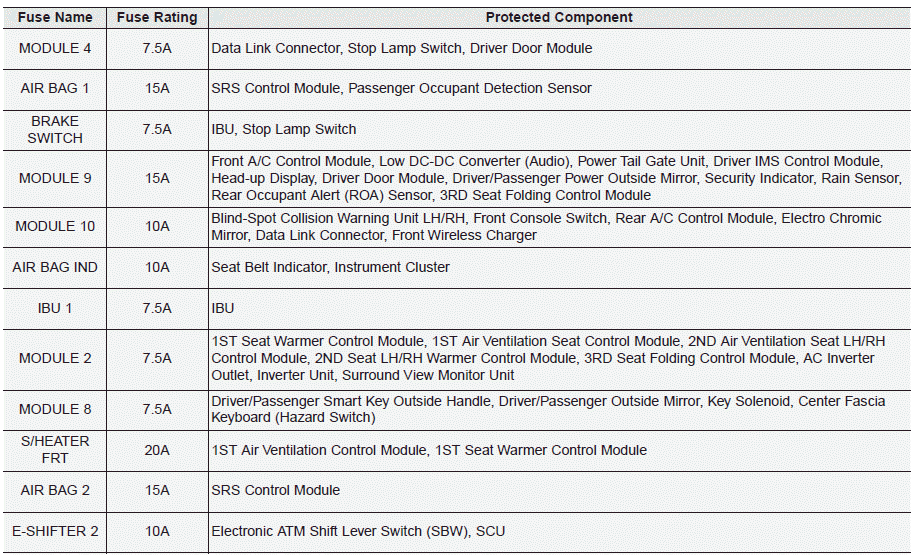

Instrument panel fuse panel

Hyundai Palisade. Fuse/Relay Panel Description

Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay names and ratings.

Information

Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.

Hyundai Palisade. Fuse/Relay Panel Description

Instrument panel fuse panel

Hyundai Palisade. Fuse/Relay Panel Description

Hyundai Palisade. Fuse/Relay Panel Description

Hyundai Palisade. Fuse/Relay Panel Description

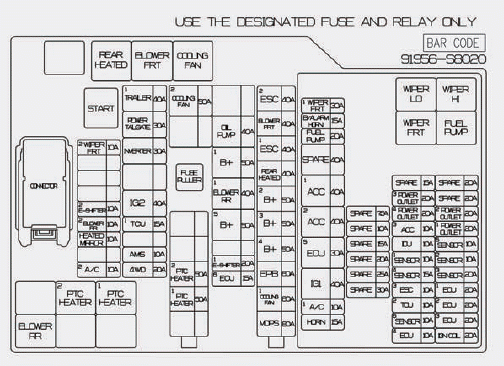

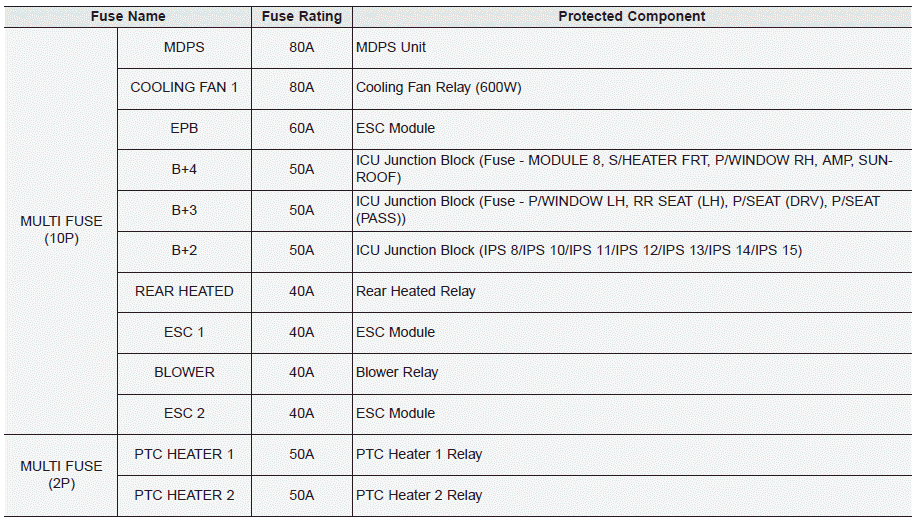

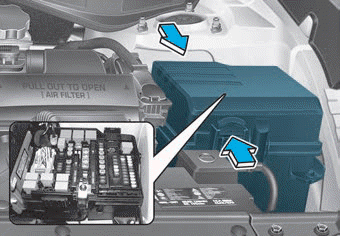

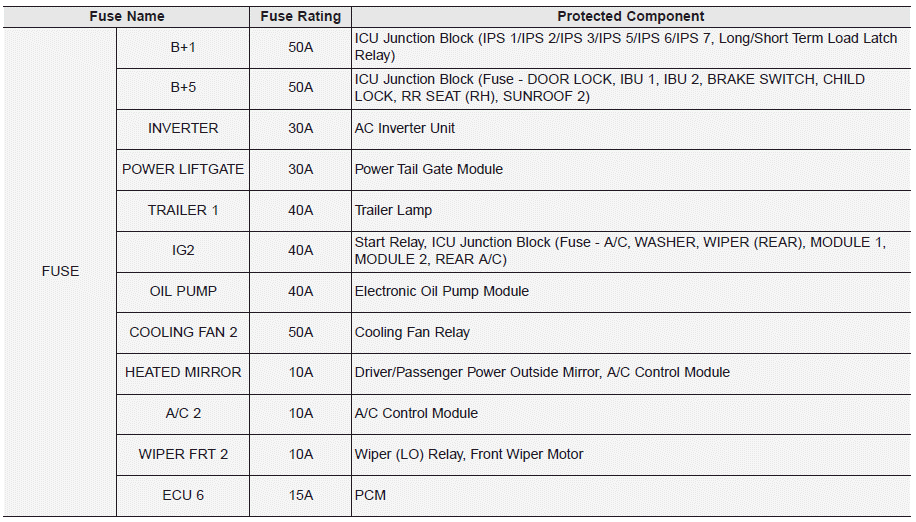

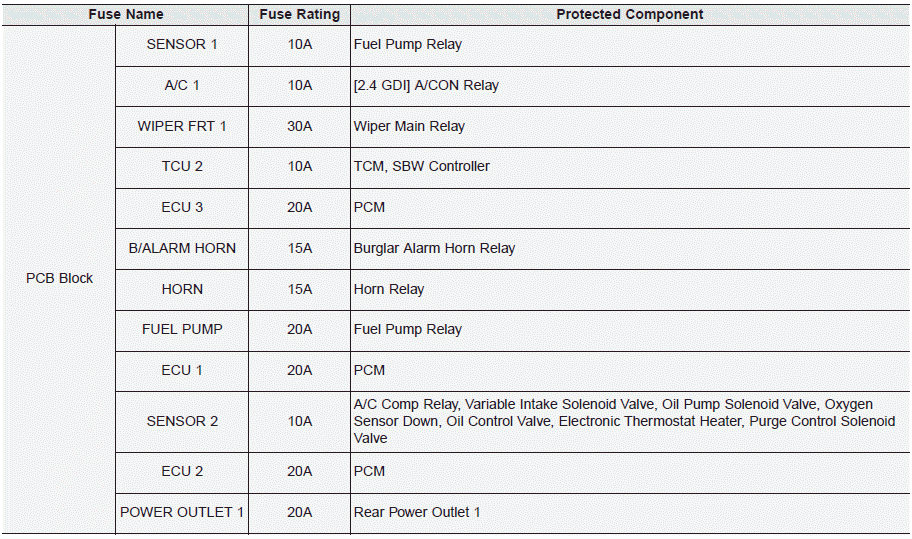

Engine compartment fuse panel

Hyundai Palisade. Fuse/Relay Panel Description

Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay names and ratings.

Information

Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

Hyundai Palisade. Fuse/Relay Panel Description

Engine compartment fuse panel

Hyundai Palisade. Fuse/Relay Panel Description

Hyundai Palisade. Fuse/Relay Panel Description

Hyundai Palisade. Fuse/Relay Panel Description

Hyundai Palisade. Fuse/Relay Panel Description

Hyundai Palisade. Fuse/Relay Panel Description

    Engine Compartment Panel Fuse Replacement

    ■ Blade type fuse ■ Cartridge type fuse 1. Turn the engine off. 2. Turn all other switches OFF. 3. Remove the fuse panel cover by pressing the tap and pulling up...

    Light bulbs

    Consult an authorized HYUNDAI dealer to replace most vehicle light bulbs. It is difficult to replace vehicle light bulbs because other parts of the vehicle must be removed before you can get to the bulb...
