Repair procedures

Removal and Installation

•	Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift. (Refer to General Information - "Lift and Support Points")

1.	Remove the upper oil pan. (Refer to Lubrication Sytstem - "Oil Pan")

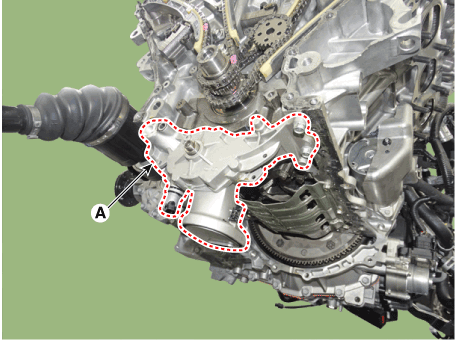

Remove the oil pump (A).

Tightening torque :

20.6 - 32.4 N.m (2.1 - 2.3 kgf.m, 15.2 - 23.9 lb.ft)

Hyundai Palisade. Repair procedures

3.	Install in the reverse order of removal.
