Hyundai Palisade (LX2): Engine Control System / Variable Intake Solenoid (VIS) Valve

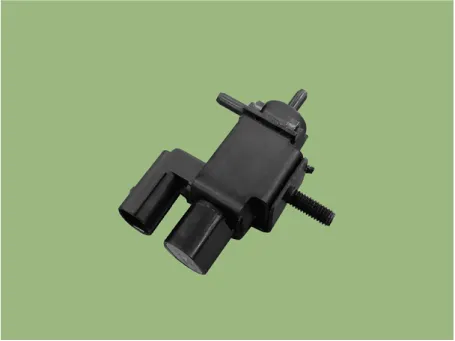

Description and operation
Installed on the intake manifold (VIS Valve 1) and the surge tank (VIS Valve
2), the Variable Intake manifold Solenoid (VIS) valves 1 and 2 control the vacuum
modulators, which activate the valves in the intake manifold and the surge tank.
These valves open or close according to engine condition. (Refer to below table.)
Specifications
Item
|
Specification
|
Coil Resistance (Ω)
|
30.0 - 35.0 [20°C (68°F)]
|

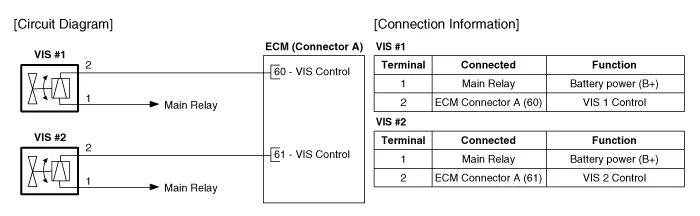

Schematic diagrams

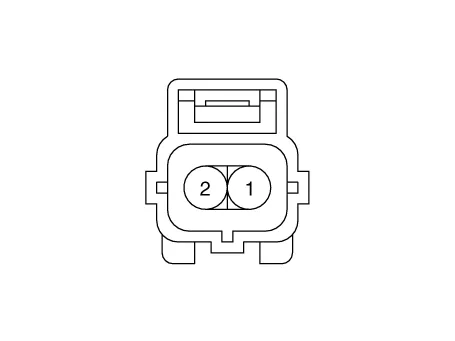

Harness Connector
Repair procedures
| 1. |
Switch "OFF" the ignition.
|
| 2. |
Disconnect the VIS valve connector.
|
| 3. |
Measure resistance between the VIS valve terminals 1 and 2.
|
| 4. |
Check that the resistance is within the specification.
|
Specification : 30.0 - 35.0Ω [20°C (68°F)]
|
|

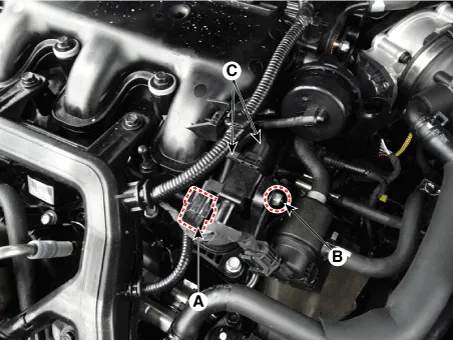

[VIS #1]
| 1. |
Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
|
| 2. |
Disconnect the variable intake solenoid valve connector (A).
|
| 3. |
Disconnect the vacuum hoses (B) from the valve.
|
| 4. |
Remove the mounting nut (C) and then remove the valve from the surge
tank.
|
Variable intake solenoid valve mounting nut :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
|
|

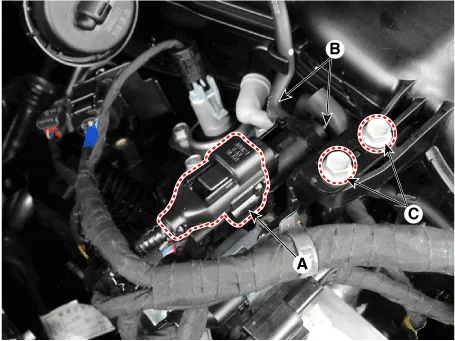

[VIS #2]
| 1. |
Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
|
| 2. |
Disconnect the variable intake solenoid valve connector (A).
|
| 3. |
Disconnect the vacuum hoses (B) from the valve.
|
| 4. |
Remove the installation nuts (C) and then remove the valve from the
surge tank.
|
Variable intake solenoid valve mounting nut :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
|
|
| • |
Install the component to the specified torque.
|
| • |
Note that internal damage may occur if the component drops.
In this case, inspect it before installation.
|
|
| • |
Keep foreign materials away from flowing into the valve.
|
|
| 1. |
Install in the reverse order of removal.
|
