Hyundai Palisade (LX2): Engine Control System / Fuel Pressure Control Valve (FPCV)
Description and operation

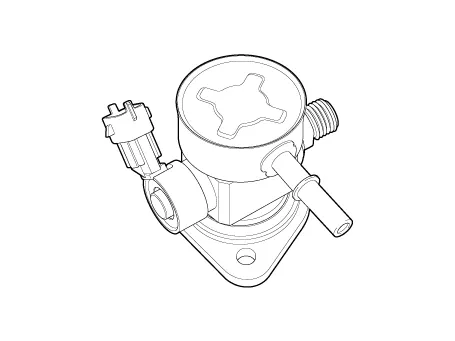

Installed on the high pressure fuel pump, the Fuel Pressure Regulator Valve
controls the fuel amount flowing into the injectors in accordance with the ECM
signal calculated based on various engine conditions.
Specifications
Item
|
Specification
|
Coil Resistance (Ω)
|
0.39 - 0.43 [20°C (68°F)]
|
Troubleshooting

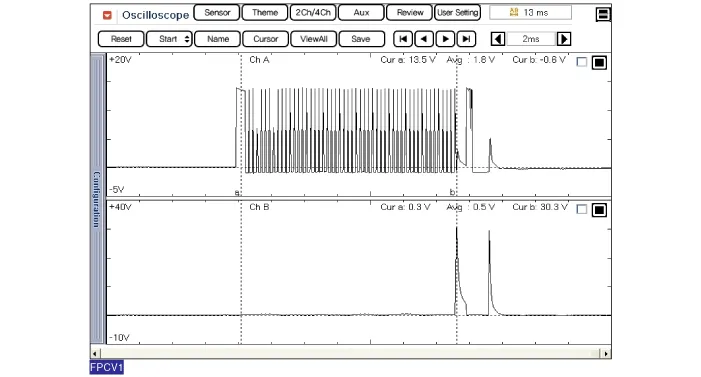

Idle rail pressure regulator waveform
Schematic diagrams

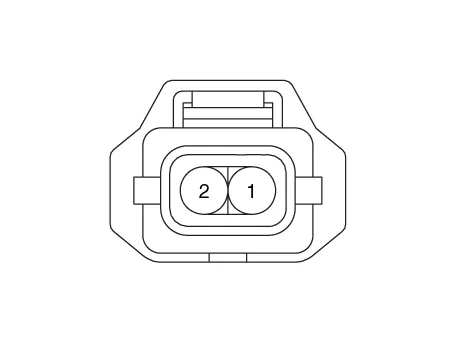

Harness Connector
Repair procedures
| 1. |
Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
|
| 2. |
Disconnect the fuel pressure regulator valve connector.
|
| 3. |
Measure resistance between the fuel pressure regulator valve terminals
1 and 2.
|
| 4. |
Check that the resistance is within the specification.
|
Specification : 0.39 - 0.43Ω [20°C (68°F)]
|
|
| • |
The fuel pressure regulator valve cannot be replaced as a unit.
Replace it as high pressure fuel pump assembly.
(Refer to Fuel Delivery System - "High Pressure Fuel Pump")
|
|
| • |
The fuel pressure regulator valve cannot be replaced as a unit.
Replace it as high pressure fuel pump assembly.
(Refer to Fuel Delivery System - "High Pressure Fuel Pump")
|
|
