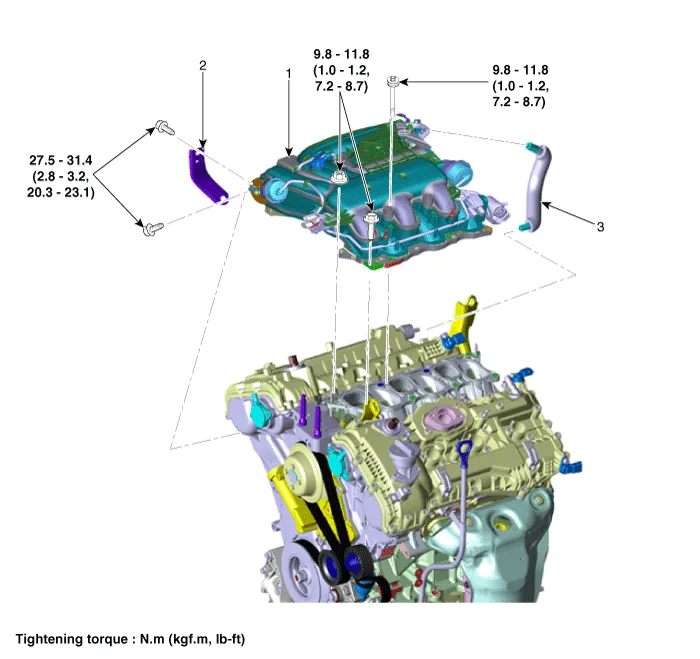

Components and components location

Components

Hyundai Palisade. Components and components location

1. Surge tank
2. Surge tank stay

3. Positive crankcase ventilation (PCV) hose

Repair procedures

Removal and Installation

1.	Remove the engine cover. (Refer to Engine and Transaxle Assembly - "Engine Cover")

2.	Remove the air cleaner assembly. (Refer to Intake And Exhaust System - "Air Cleaner")

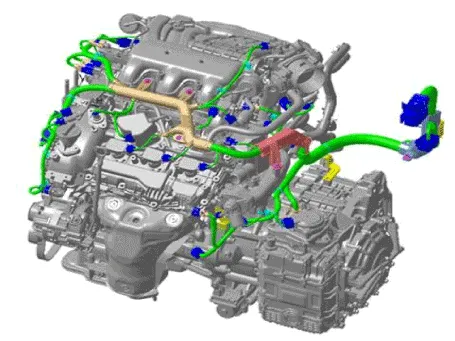

3.	Disconnect the wiring connectors and harness clamps and remove the wiring protector around the surge tank.

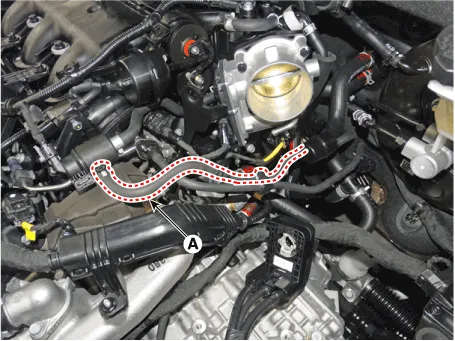

4.	Disconnect the brake booster vacuum hose (A).

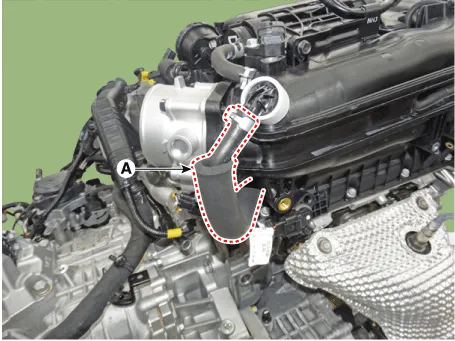

5.	Disconnect the purge control solenoid valve (PCSV) hose (A).

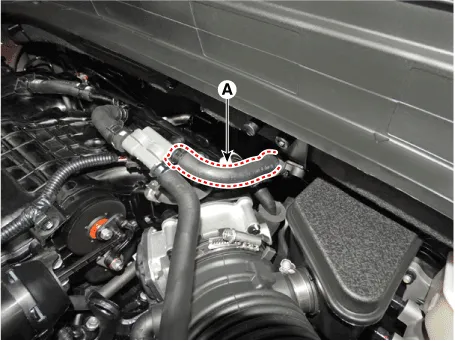

6.	Disconnect the positive crankcase ventilation (PCV) hose (A).

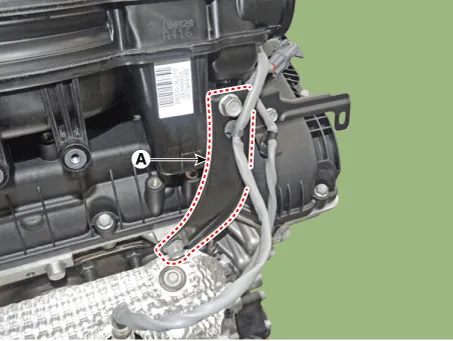

Remove the surge tank stay (A).

Tightening torque :

27.5 - 31.4N.m (2.8 - 3.2kgf.m, 20.3 - 23.1lb.ft)

Hyundai Palisade. Repair procedures

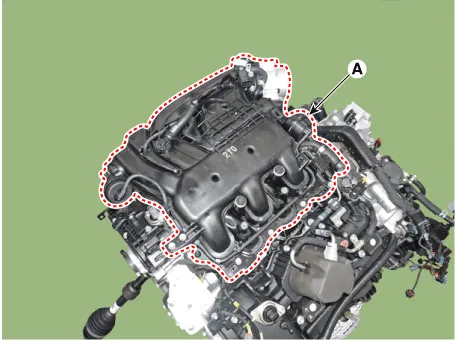

Remove the surge tank (A).

Tightening torque :

9.8 - 11.8N.m (1.0 - 1.2kgf.m, 7.2 - 8.7lb.ft)

Hyundai Palisade. Repair procedures

9.	Install in the reverse order of removal.
