Hyundai Palisade (LX2): Rear View Monitor (RVM) / Schematic diagrams

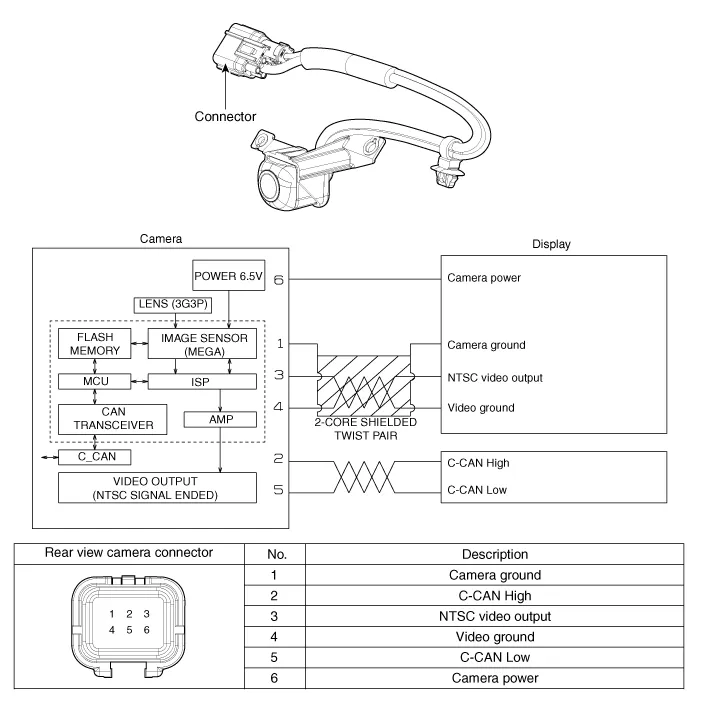

| Circuit Diagram |
Component Location 1. Rear view camera 2. AVN monitor
Description Rear view camera will activate when the backup light is ON with the ignition switch ON and the shift lever in the R position.
