Trouble Symptom Charts

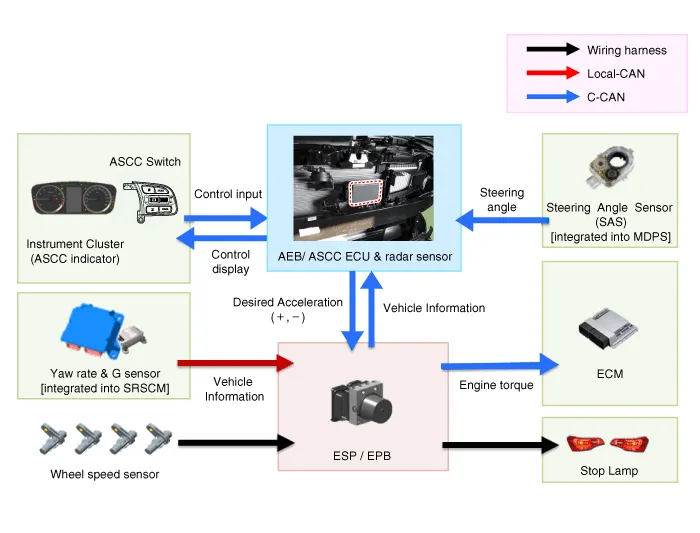

Hyundai Palisade. Schematic diagrams

Component Parts and Function Outline
Component part
Function
Cruise Control Switch
 Input the set speed and distance to the SCC ECU.
Instrument Cluster
 Display various information inputted from SCC.
Smart Cruise Control Unit
 Recognize and track the vehicle ahead.
Calculate the target speed and distance
Request the acceleration and retardation to ESP
VDC (HECU)
 Automatic braking and request the engine torque control to the engine (ECM)
Request the EPB torque control on the Electronic Parking Brake (EPB)
Request the stop lamp indicator ON
Engine (ECM)
 Control the engine torque
Electronic Parking Brake (EPB)
 Control the EPB torque
Stop lamp
 Stop lamp indicator ON

    Description The smart cruise control system allows a driver to program the vehicle to control the speed and following distance by detecting the vehicle ahead without depressing the brake pedal or the accelerator pedal.

    Specifications Specification Item Specification Power supply (V) 12 Operation voltage (V) 9 - 16 Description and operation Description The smart cruise control unit is installed on the front right-hand side of the chassis.
