Hyundai Palisade (LX2): Parking Distance Warning (PDW) / Components and components location

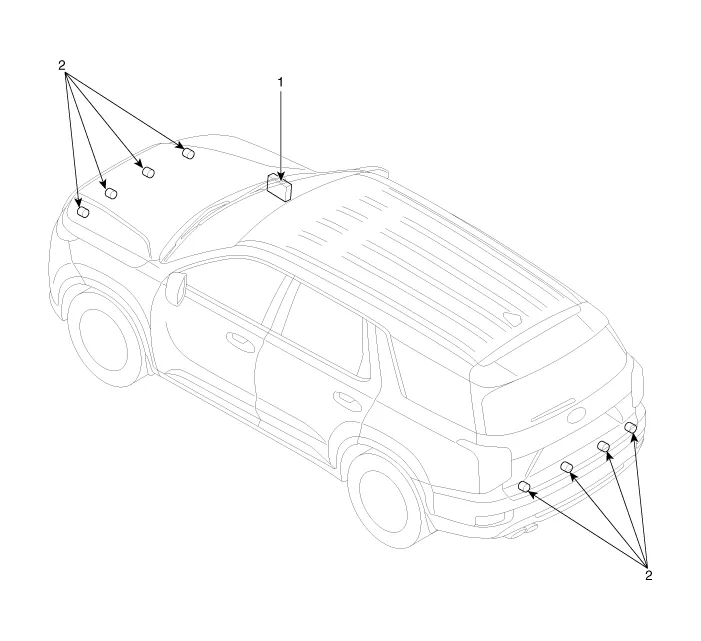

| Component Location |
| 1. IBU (Integrated Body Control
Unit) |
2. Parking distance warning sensor |
Specifications Item Specification Ultrasonic sensor Voltage rating DC 12V Operating voltage DC 9V - 16V Operation temperature -22 to 176°F (-30 to 80°C) storage temperature -40 to 185°F (-40 to 85°C) Operation current MAX 350 mA Operation frequency 48 ± 5 kHZ Number of sensors 8 units
Description • PDW consists of 8 sensors (front : 4 units, rear : 4 units) that are used to detect obstacles and transmit the result in three separate warning levels, the first, second and third to IBU via LIN communication.
