Hyundai Palisade (LX2): Automatic Transaxle Control System / SBW Control Unit (SCU)
Hyundai Palisade (LX2) 2020-2026 Service Manual / Automatic Transaxle System (A8LF1) / Automatic Transaxle Control System / SBW Control Unit (SCU)
Components and components location
| Component Location |

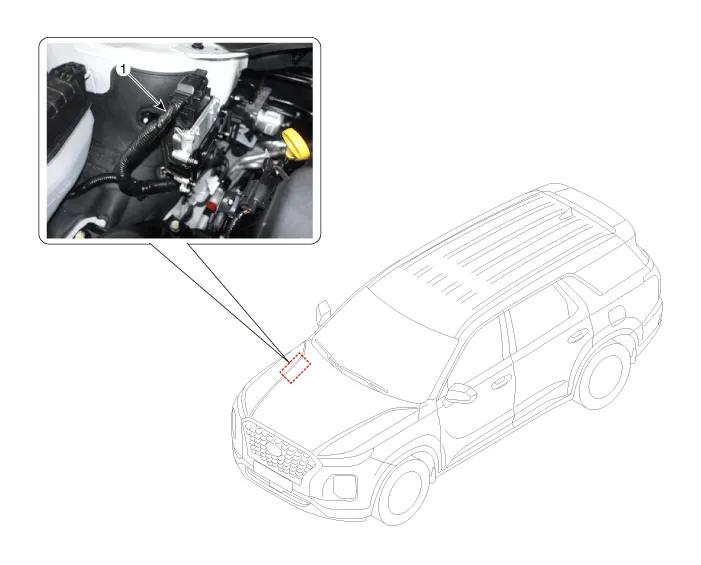

| 1. SBW Control Unit (SCU) |
Repair procedures
| Removal |
| 1. |
Turn ignition switch OFF and disconnect the negative (-) battery cable.
|
| 2. |

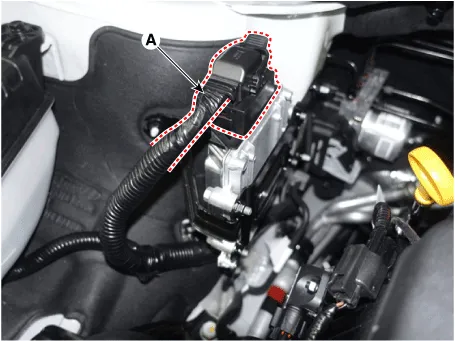

Disconnect the connector (A).
|
| 3. |

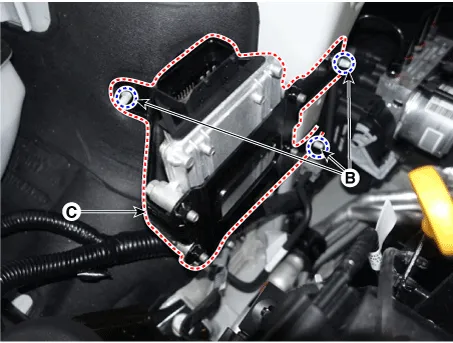

Remove the SBW Control Unit (SCU) (C) after removing the nuts (B).
|
| Installation |
| 1. |
To install, reverse the removal procedure.
|
Repair procedures Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2.
