Hyundai Palisade (LX2): Body Side Molding / Rear Wheel Guard

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Body Side Molding / Rear Wheel Guard

Repair procedures

Replacement
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.
Remove the rear tire.
2.

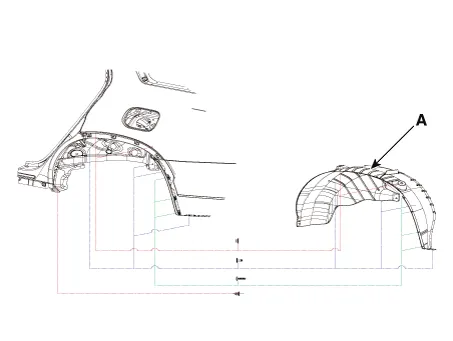

Loosen the mounting clip and remove the rear wheel guard (A).

Hyundai Palisade. Repair procedures
3.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Replace any damaged clips (or pin-type retainers).
