| Replacement |
|
| 1. |

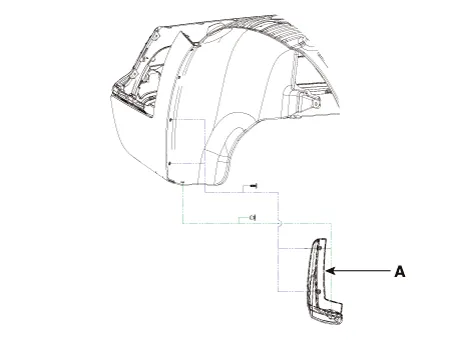

Loosen the mounting clips, screws and, remove the rear mud guard (A).
|
| 2. |
To install, reverse removal procedure.
|
