Hyundai Palisade (LX2): Rear Suspension System / Rear Stabilizer Bar

Hyundai Palisade (LX2) 2020-2026 Service Manual / Suspension System / Rear Suspension System / Rear Stabilizer Bar

Repair procedures

Removal
1.
Raise the vehicle, and make sure it is securely supported.
2.
In the case of 4WD vehicle, remove the rear differential assembly.
(Refer to Driveshaft and axle - "Rear Differential Carrier")
3.

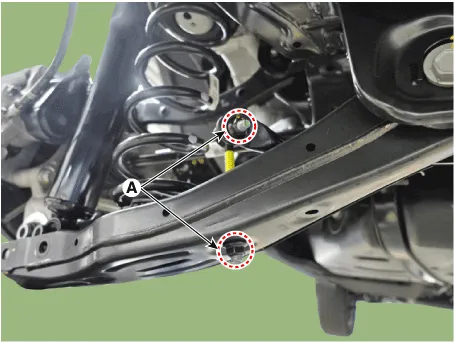

Loosen the nut (A) and then remove the stabilizer link.
Tightening torque :
98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb-ft)

Hyundai Palisade. Repair procedures
4.

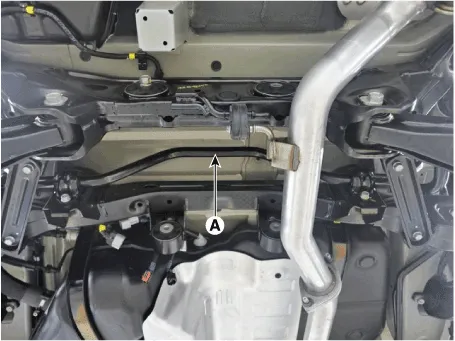

Remove the stabilizer bar (A).
Tightening torque :
44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb-ft)

Hyundai Palisade. Repair procedures
Inspection
1.
Check the rear stabilizer bar for deformation.
2.
Check the rear stabilizer link ball joint for damage.
Installation
1.
Install in the reverse order of removal.
