| Removal |
| 1. |
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
|
| 2. |
Remove the rear wheel and tire (A) from rear hub.
|
| 3. |
Remove the rear brake caliper.
(Refer to Brake System - "Rear Disc Brake")
|
| 4. |
Remove the rear hub carrier.
(Refer to Driveshaft and axle - "Rear Hub -Carrier")
|
| 5. |
In the case of 4WD vehicle, remove the rear differential assembly.
(Refer to Driveshaft and axle - "Rear Differential Carrier")
|
| 6. |
Remvoe the trailing arm.
(Refer to Suspension System - "Trailing Arm")
|
| 7. |
Remove the center muffler.
(Refer to Engine Mechanical System - "Muffler")
|
| 8. |

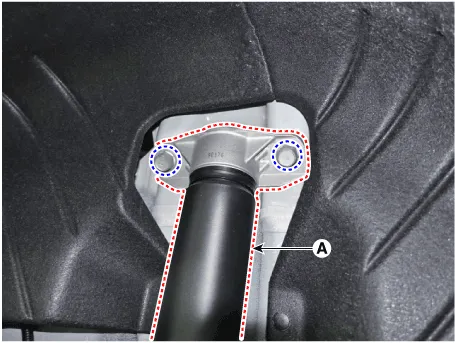

Remove the rear shock absorber (A) from the body by loosening the bolt.
|
| 9. |

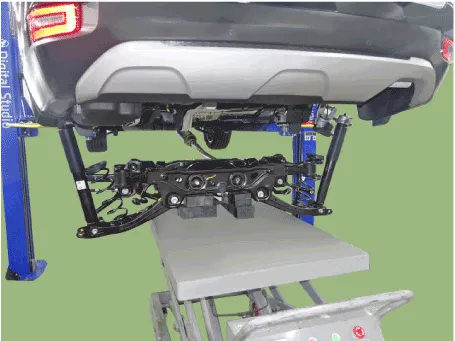

After setting a jack, loosen the bolts and then remove the rear cross
member.
|
| Inspection |
| 1. |
Check the rear stabilizer bar for deformation.
|
| 2. |
Check the rear stabilizer link ball joint for damage.
|
| Installation |
| 1. |
Install in the reverse order of removal.
|
| 2. |
Check the alignment.
(Refer to Suspension System - "Alingment")
|
