Hyundai Palisade (LX2): Rear Heater / Rear Heater Core

Repair procedures

Replacement
1.
Remove the rear heater & A/C unit.
(Refer to Rear Heater - "Rear Heater Unit")
2.

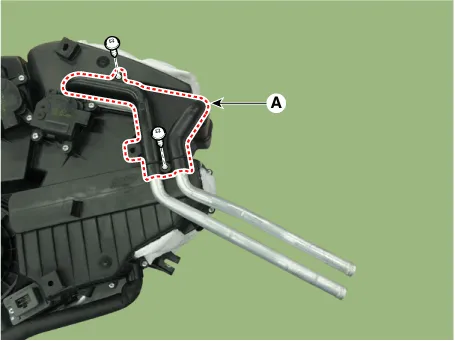

Loosen the mounting screws and remove the rear heater core cover (A).

Hyundai Palisade. Repair procedures

3.

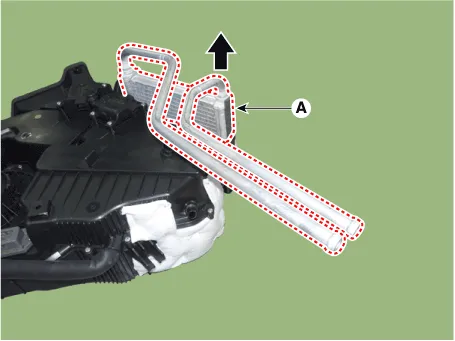

Remove the heater cover (A).

Hyundai Palisade. Repair procedures

4.
Install in the reverse order of removal.
Hyundai Palisade. Repair procedures
•
Be careful that the coolant may flow when removing the heater core.

    Components and components location Component Location 1. Rear Heater & A/C Unit Repair procedures Replacement    • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.

    Repair procedures Replacement 1. Remove the rear heater & A/C unit. (Refer to Rear Heater - "Rear Heater Unit") 2.
