Hyundai Palisade (LX2): Rear Door / Rear Door Latch

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Latch

Components and components location

Component Location

Hyundai Palisade. Components and components location

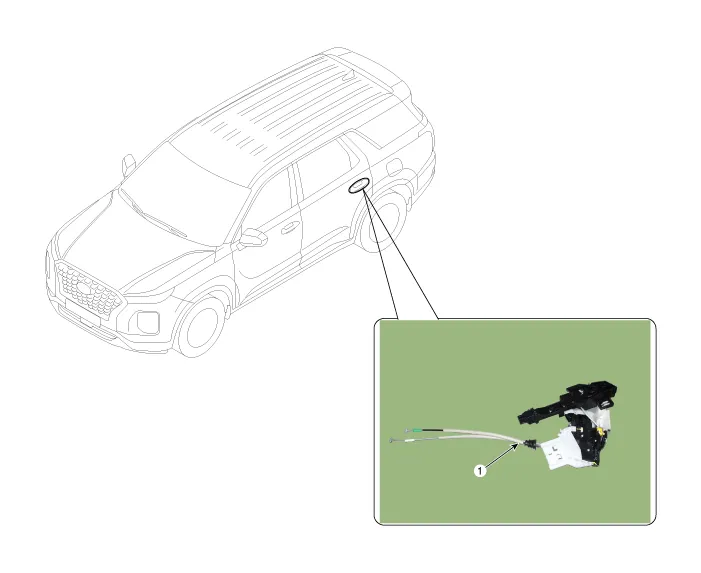

1. Rear door latch

Repair procedures

Replacement
Hyundai Palisade. Repair procedures
•
Put on gloves to prevent hand injuries.
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Be careful not to scratch the door trim and other parts.
1.
Remove the rear door module.
(Refer to Rear Door - "Rear door module")
2.

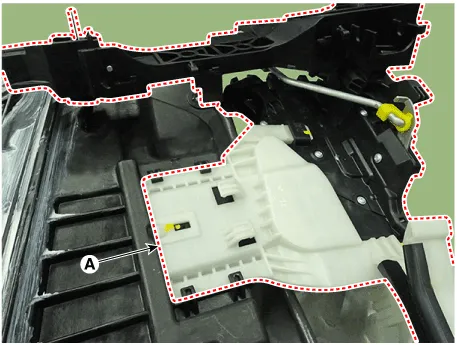

Remove the rear door inside handle case (A).

Hyundai Palisade. Repair procedures
3.

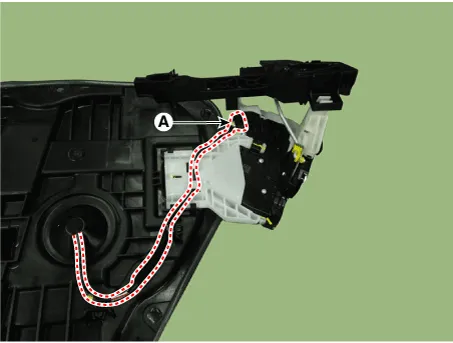

Separate the rear door outside handle base connector and wiring harness (A).

Hyundai Palisade. Repair procedures
4.

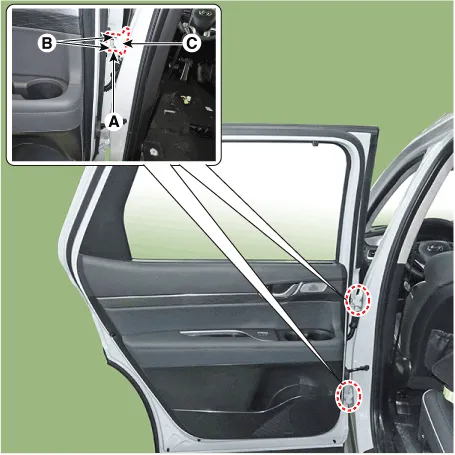

Press the lock pin and remove the rear door latch assembly (A).

Hyundai Palisade. Repair procedures
5.

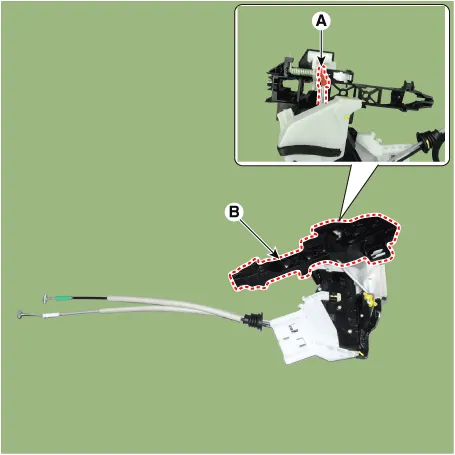

Separate the rod (A) and remove the rear door outside handle base (B).

Hyundai Palisade. Repair procedures
6.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Make sure the connector is connected properly.
•
Make sure the door locks / unlocks and opens / closes properly.
•
Replace any damaged clips (or pin-type retainers).
