Hyundai Palisade (LX2): Rear Door / Rear Door Belt Inside Weatherstrip

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Belt Inside Weatherstrip

Repair procedures

Replacement
1.
Remove the rear door trim.
(Refer to Rear Door - "Rear Door Trim")
2.

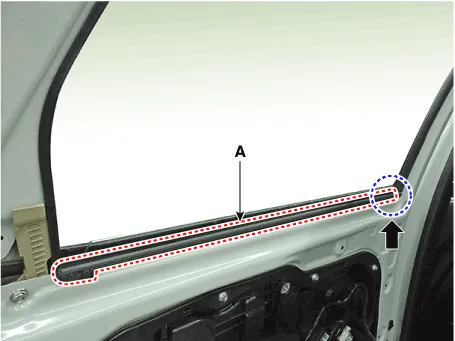

Remove the rear door belt inside weatherstrip (A).

Hyundai Palisade. Repair procedures
3.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
When installing, install it by first contacting the inside part (basis point of assembly) of arrow to door frame.
