Hyundai Palisade (LX2): Lubrication System / Oil Pump

Hyundai Palisade (LX2) 2020-2026 Service Manual / Engine Mechanical System / Lubrication System / Oil Pump

Repair procedures

Removal and Installation
Hyundai Palisade. Repair procedures
•
Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
1.
Remove the upper oil pan.
(Refer to Lubrication Sytstem - "Oil Pan")
2.

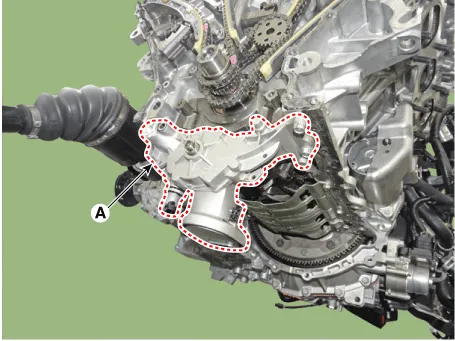

Remove the oil pump (A).
Tightening torque :
20.6 - 32.4 N.m (2.1 - 2.3 kgf.m, 15.2 - 23.9 lb.ft)

Hyundai Palisade. Repair procedures
3.
Install in the reverse order of removal.

    Components and components location Components 1. Lower oil pan 2. Upper oil pan Repair procedures Removal    • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.

    Repair procedures Removal and Installation    • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
