Hyundai Palisade (LX2): Lighting System / Luggage Room Lamp

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body Electrical System / Lighting System / Luggage Room Lamp

Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.

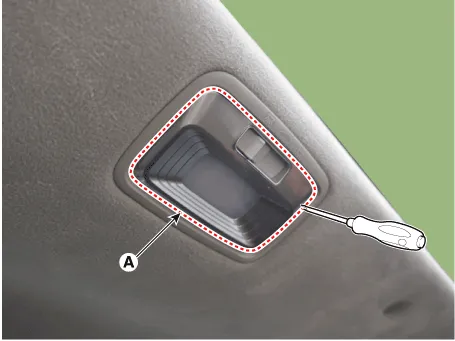

Remove the luggage room lamp lens with a flat-tip screwdriver.

Hyundai Palisade. Repair procedures
3.

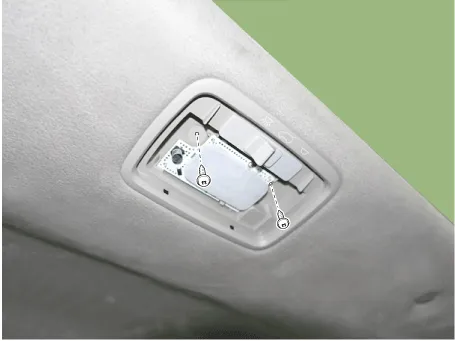

Remove the luggage room lamp bulb.

Hyundai Palisade. Repair procedures
4.

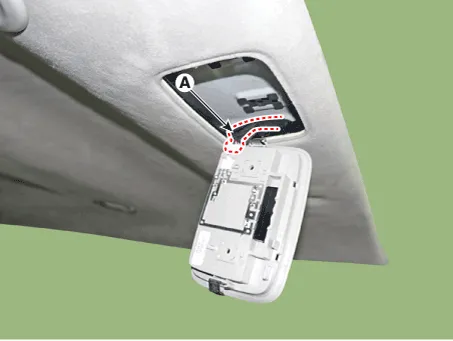

Remove the luggage room lamp assembly after disconnecting the connector (A).

Hyundai Palisade. Repair procedures
Installation
1.
Install the luggage room lamp assembly after connecting the lamp connector.
