Hyundai Palisade (LX2): Lighting System / Rear Combination Lamp
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the rear combination lamp cover (A) with a flat-tip screwdriver.
|
| 3. |

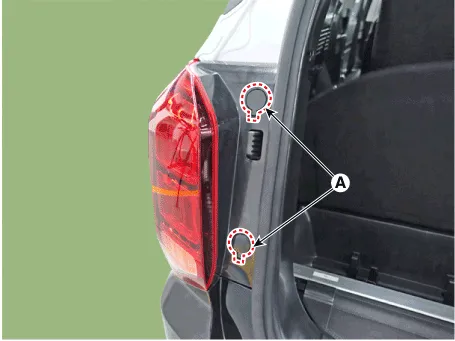

Remove the rear combination lamp mounting cap (A).
|
| 4. |

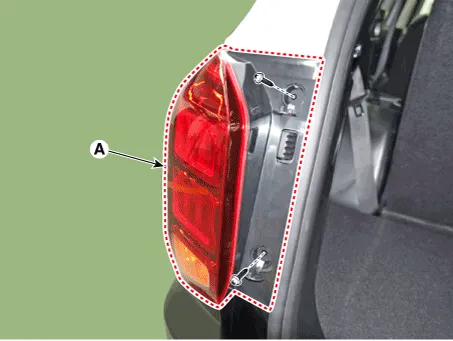

Loosen the mounting bolts then remove the outside rear combination lamp
(A).
|
| 5. |

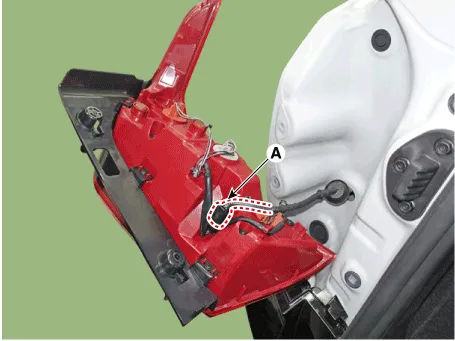

Disconnect the rear combination lamp connector (A).
|
| Installation |
| 1. |
Install the rear combination lamp
|
| 2. |
Connect the negative (-) battery terminal.
|
