Repair procedures

Removal
High Mounted Stop Lamp
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear spoiler.
(Refer to Body - "Rear Spoiler")
3.

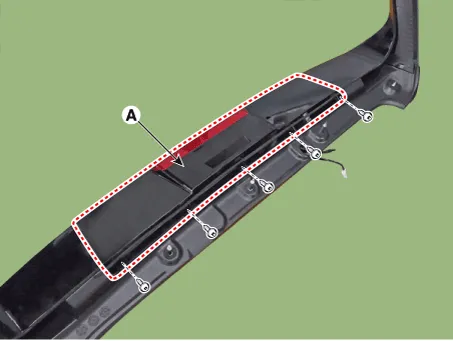

Remove the high mounted stop lamp cover (A).

Hyundai Palisade. Repair procedures
4.

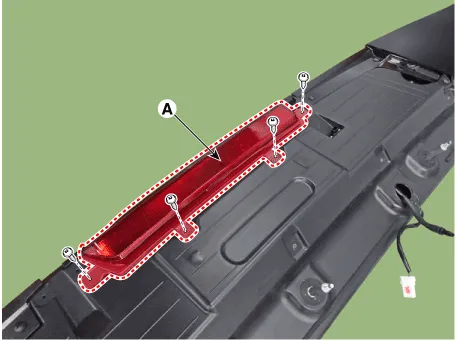

Remove the high mounted stop lamp assembly (A) after loosening screws (4EA).

Hyundai Palisade. Repair procedures
Installation
1.
Install the high mounted stop lamp.
2.
Install the rear spoiler.
3.
Connect the negative (-) battery terminal.

    Repair procedures Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the license lamp lens from the panel after loosening a screw.

    Repair procedures Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the luggage room lamp lens with a flat-tip screwdriver.
