Hyundai Palisade (LX2): Hood / Hood Lift

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Hood / Hood Lift

Repair procedures

Replacement
Hyundai Palisade. Repair procedures
•
When removing and installing the hood lifter, an assistant is necessary.
•
When removing the clips, use a clip remover.
1.

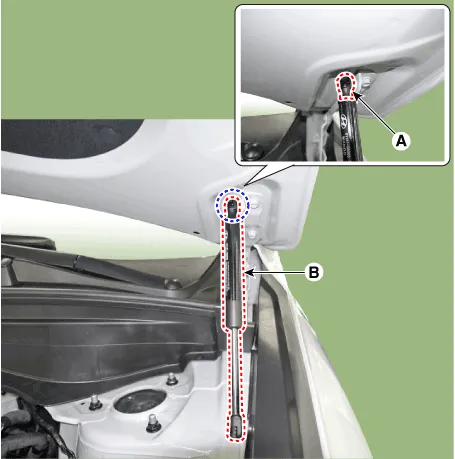

Using a screwdriver, lift the socket clips (A) up slightly on both ends of the lifter (B).

Hyundai Palisade. Repair procedures
2.
Push the socket of the lifter into the bracket for installation.
Hyundai Palisade. Repair procedures
•
Make sure the hood locks/unlocks and opens/closes properly.
