Hyundai Palisade (LX2): Engine And Transaxle Assembly / Engine Room Under Cover

Hyundai Palisade (LX2) 2020-2026 Service Manual / Engine Mechanical System / Engine And Transaxle Assembly / Engine Room Under Cover

Repair procedures

Removal and Installation
Hyundai Palisade. Repair procedures
•
Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
1.

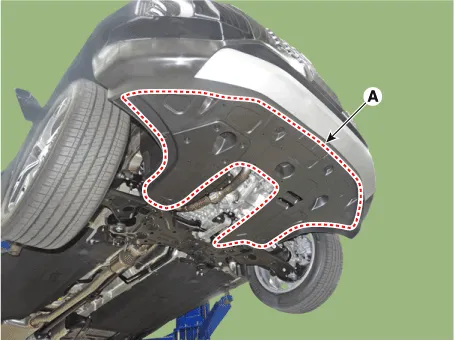

Remove the engine room under cover (A).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Hyundai Palisade. Repair procedures
2.
Install in the reverse order of removal.
