Hyundai Palisade (LX2): Engine And Transaxle Assembly / Engine Cover

Hyundai Palisade (LX2) 2020-2026 Service Manual / Engine Mechanical System / Engine And Transaxle Assembly / Engine Cover

Repair procedures

Removal and Installation
1.

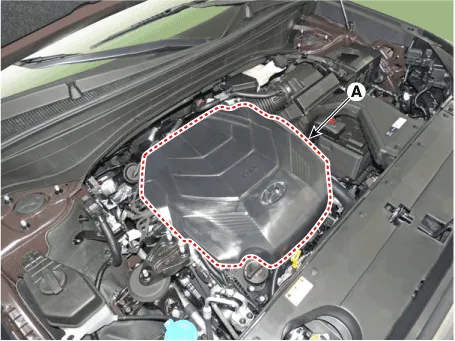

Remove the engine cover (A).

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
•
Lift up the lower end of engine cover, then left and right alternately.
•
When installing, confirm that the mounting rubber insulators has been installed.
2.
Install in the reverse order of removal.

    Repair procedures Removal and Installation    • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
