Components and components location

Component Location

Hyundai Palisade. Components and components location

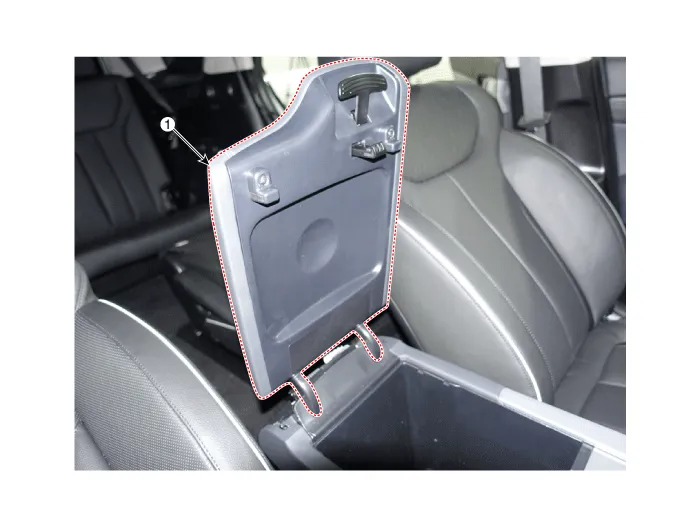

1. Console armrest

Repair procedures

Replacement
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
Hyundai Palisade. Repair procedures
•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.

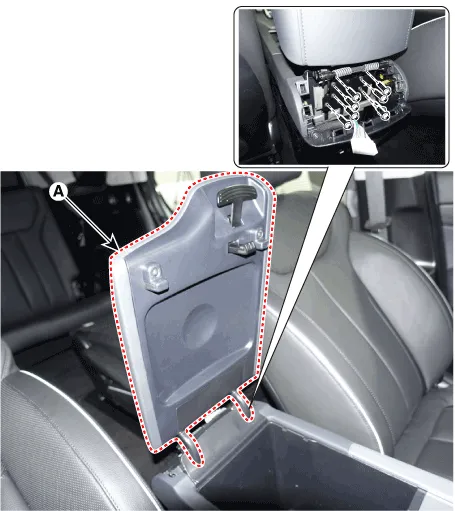

Loosen the mounting screws and remove the console armrest (A).

Hyundai Palisade. Repair procedures
2.
To install, reverse removal procedure.

    Components and components location Component Location 1. Rear console upper cover 2. Rear console under cover Repair procedures Replacement [Upper]    • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
