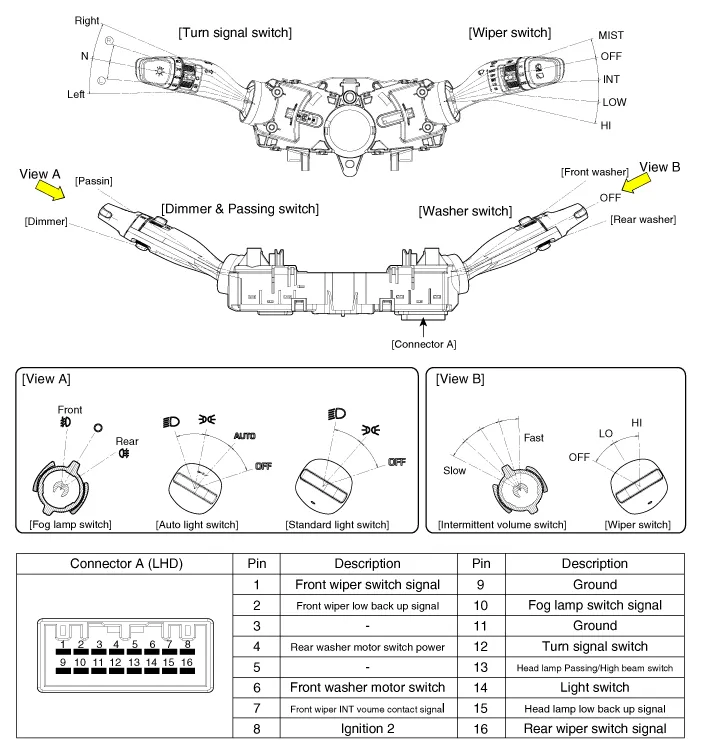

Hyundai Palisade (LX2): Multifunction Switch / Components and components location

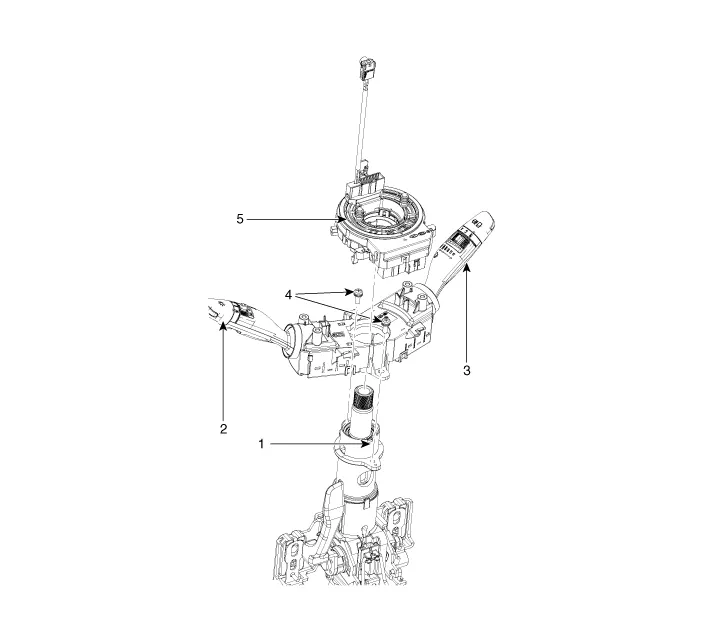

| Component |
| 1. Steering column 2. Light switch 3. Wiper |
4. Screw 5. Clock spring |
Specifications Items Specifications Rated voltage DC 12V Operating temperature range -22 to +176°F (-30°C to +80°C) Rated load Dimmer & passing switch High : 0.
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the steering wheel. (Refer to Steering System - "Steering Wheel") 3.
