Hyundai Palisade (LX2): Rear Corner Radar System / Rear Corner Radar Unit

Hyundai Palisade (LX2) 2020-2025 Service Manual / Advanced Driver Assistance System (ADAS) / Rear Corner Radar System / Rear Corner Radar Unit

Specifications

[BCW, BCA]

Items	Blind-Spot Collision Warning (BCW)	Blind-Spot Collision- Avoidance Assist (BCA)
Rated voltage	DC 12V
Operating voltage	9V - 16V
Operating speed	30 km/h - 255 km/h	60 km/h - 180 km/h
Sensible distance	70m
Curvature radius	Start : More than 100m	Start : More than 625m
Curvature radius	Stop : Less than 70m	Stop : Less than 588m
Frequency	76 - 77 GHz
Numbers	2EA

[RCCW, RCCA]

Items	Rear Cross-Traffic Collision Warning System (RCCW)	Rear Cross-Traffic Collision- Avoidance Assist (RCCA)
Rated voltage	DC 12V
Operating voltage	9V ~ 16V
Operating speed	0 km/h ~ 10 km/h	0.1 km/h ~ 10 km/h
Sensible distance	25m
Curvature radius	-
Frequency	76 ~ 77 GHz
Numbers	2EA

Schematic diagrams

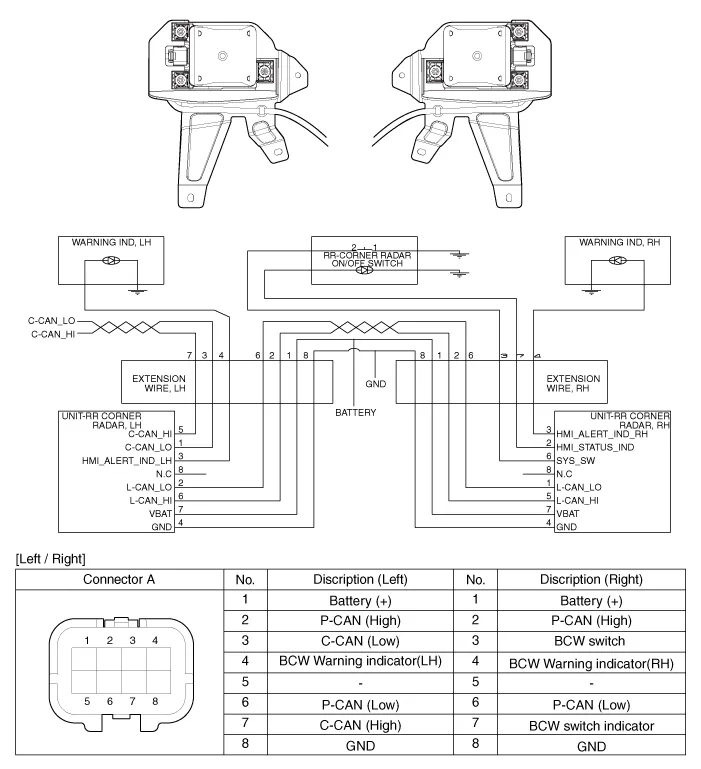

Connector and Terminal Function

[Connector Funtion]

Hyundai Palisade. Schematic diagrams

Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the rear bumper cover. (Refer to Body - "Rear Bumper Cover")

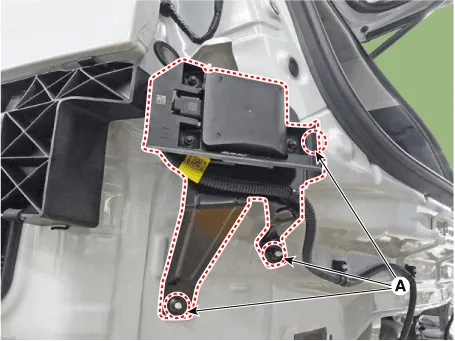

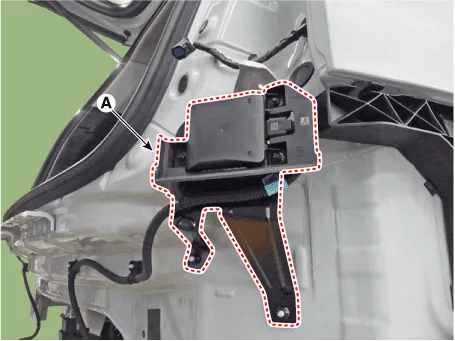

3.	Remove the blind spot radar unit (A) after loosening the mounting nuts. [LH] [RH]

When replace the bracket, disconnect the radar connector (A) after loosening the mounting nuts.

Hyundai Palisade. Repair procedures

•	Be careful not to damage the bracket when removing the rear corner radar unit.

Installation

Install the rear corner radar unit and bracket.

Tightening torque :

bracket : 0.82 - 1.17 kgf.m (8.1 - 11.5 N.m, 5.97 - 8.48 Ib-ft)

unit : 0.31 - 0.37 kgf.m (3.1 - 3.7 N.m, 2.28 - 2.72 Ib-ft)

2.	install the rear bumper cover.

Connect the negative (-) battery terminal.

•	Take care not to confuse left side (master) and right side (slave) unit when installing.

4.	Perform "Correcting the Rear Corner Radar Unit Angle" procedures.

5.	Perform "Rear Corner Radar Calibration" procedures.

Inspection

Correcting the Rear Corner Radar Unit Angle

After replacing the blind-spot radar unit or bracket, with the bumper removed, use the blind-spot radar unit correction tool set (special tool : 09985-3T500) to perform angle correction.

•	Perform the task on a level place.

•	Perform the task after checking the tire pressure.

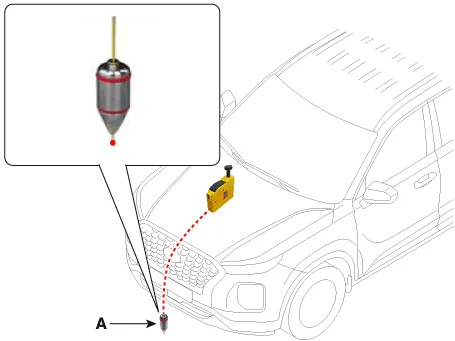

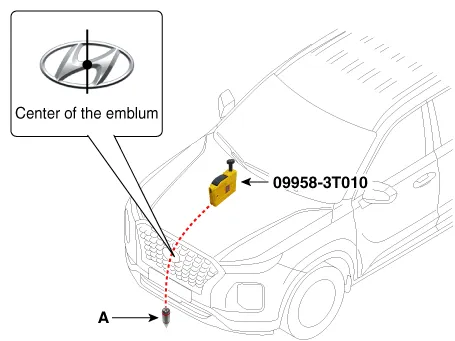

2.	Attach a vertical plumb (special tool : 09958-3T010) on the hood, and lower the plumb (A) to the ground so that it passes through the center of the emblem.

3.	Marking the center point below the plumb (A).

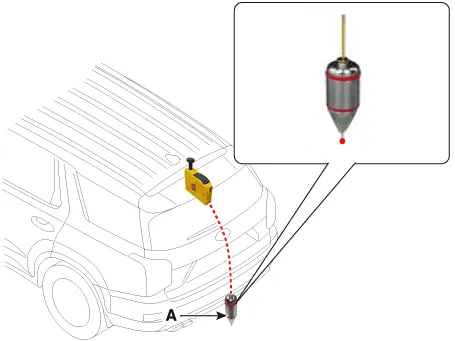

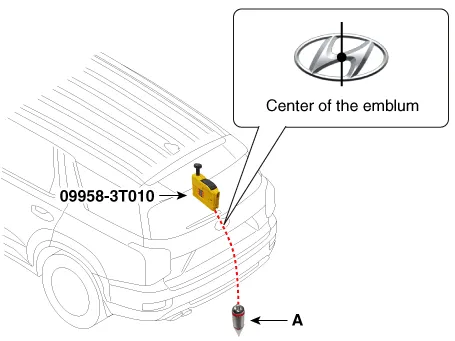

4.	Attach a vertical plumb (special tool : 09958-3T010) on the trunk (or tailgate), and lower the plumb (A) to the ground so that it passes through the center of the emblem.

5.	Marking the center point below the plumb (A).

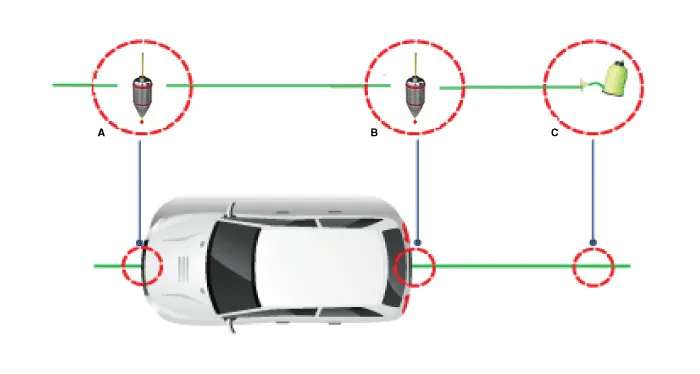

Marking the center of vehicle by a string.

1)	Pass the string through the bottom of the vehicle from the rear of the vehicle to the front and fix the string to the center point (A) of the front of the vehicle.

2)	Fix the string to the point (C) about 1.5 - 2m from the back of the vehicle so that it passes the rear center point (B).

Hyundai Palisade. Repair procedures

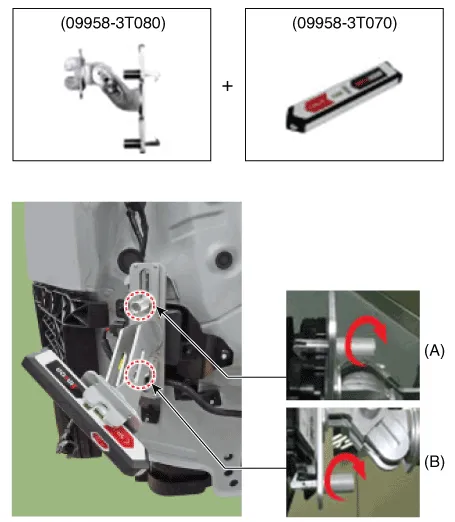

Mount the blind-spot radar unit fixing adaptor (special tool : 09958-3T080) on the blind-spot radar unit and fix the level laser (special tool : 09958-3T070).

Hyundai Palisade. Repair procedures

•	When with the blind-spot radar unit cover, remove the cover and then mount the fixing adapter (special tool: 09958-3T080).

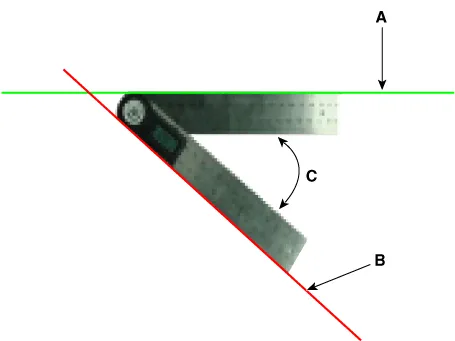

Measure the angle (C) between the center line (A) of the angle measuring plate and the horizontal laser beam (B) using a digital protractor (special tool : 09958-3T090).

Horizontal Angle (C): 54° ± 3°

Hyundai Palisade. Repair procedures

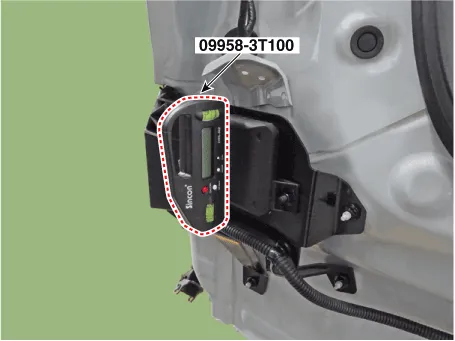

Use a digital inclinometer (special tool : 09958-3T100) to measure the vertical angle of the blind-spot radar unit.

Vertical Angle : 87° ± 1.5°

Hyundai Palisade. Repair procedures

10.

Measure the horizontal and vertical angles of left and right blind-spot radar units. If the measured values deviate from the specified values, insert a washer between the bracket of the blind-spot radar unit.

Specified Values

Horizontal Angle : 54° ± 3°

Vertical Angle : 87° ± 1.5°

Hyundai Palisade. Repair procedures

11.	After checking and correcting the blind-spot radar unit angle, perform the blind-spot radar radar correction procedure.

Rear Corner Radar Calibration

1.	Rear bumper accident vehicles and vehicles that replaced rear corner radar units must perform rear corner radar unit alignment using Diagnostic tool.

2.	Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel, and turn on the Diagnostic tool.

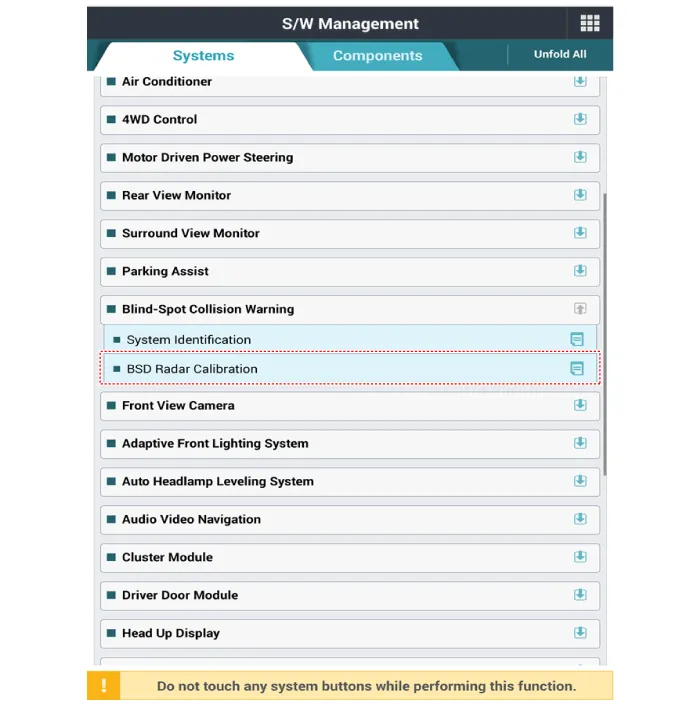

3.	Select the 'S/W Management' and 'Car model'.

4.	Select "Blind -Spot Collision Warning" and "BSD Radar Calibration".

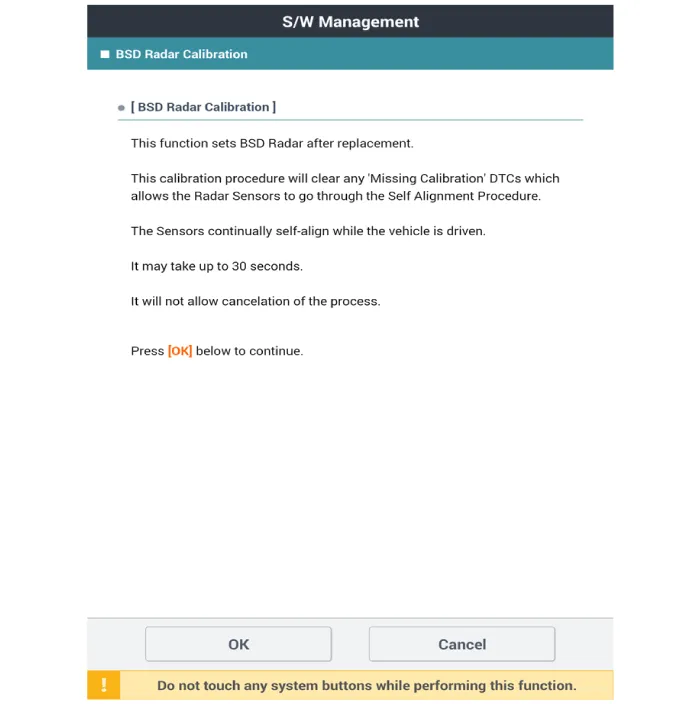

5.	Perform the "BSD Radar Calibration" procedure according to the Diagnostic tool screen message.
