| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the steering wheel.
(Refer to Steering System - "Steering Wheel")
|
| 3. |
Remove the steering column upper and lower shrouds.
(Refer to Body - "Steering Column Shroud Panel")
|
| 4. |
Remove the clock spring.
(Refer to Retraint - "Driver Airbag (DAB) Module and Clock Spring)
|
| 5. |

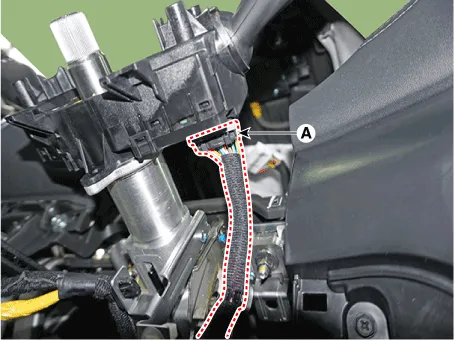

Disconnect the multifunction switch connector (A).
|
| 6. |
Loosen the screws (2EA) and then remove the multifunction switch assembly
(A).
|
| Installation |
| 1. |
Install the multifunction switch.
|
| 2. |
Install the clock spring and steering wheel.
|
| 3. |
Install the steering column upper and lower shrouds.
|
| 4. |
Install the steering wheel.
|
| Inspection |
| 1. |

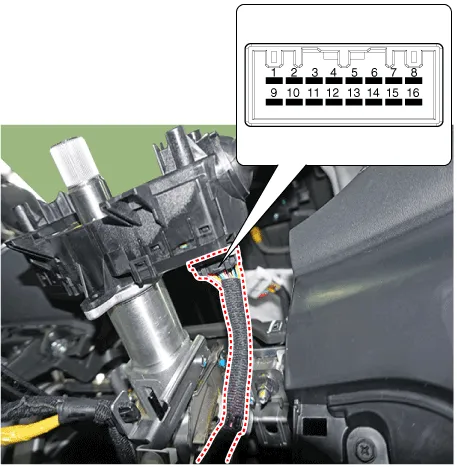

Check for continuity between the terminals in each switch position as
shown below.
|
| 1. |
In the body electrical system, failure can be quickly diagnosed by using
the vehicle diagnostic system (Diagnostic tool).
The diagnostic system (Diagnostic tool) provides the following information.
|
| 2. |

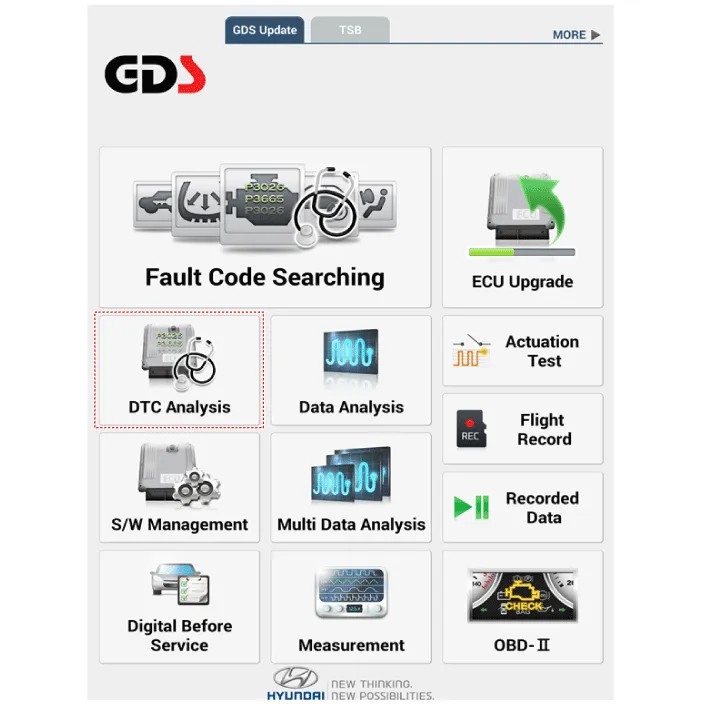

If diagnose the vehicle by Diagnostic tool, select "DTC Analysis" and
"Vehicle".
|
| 3. |

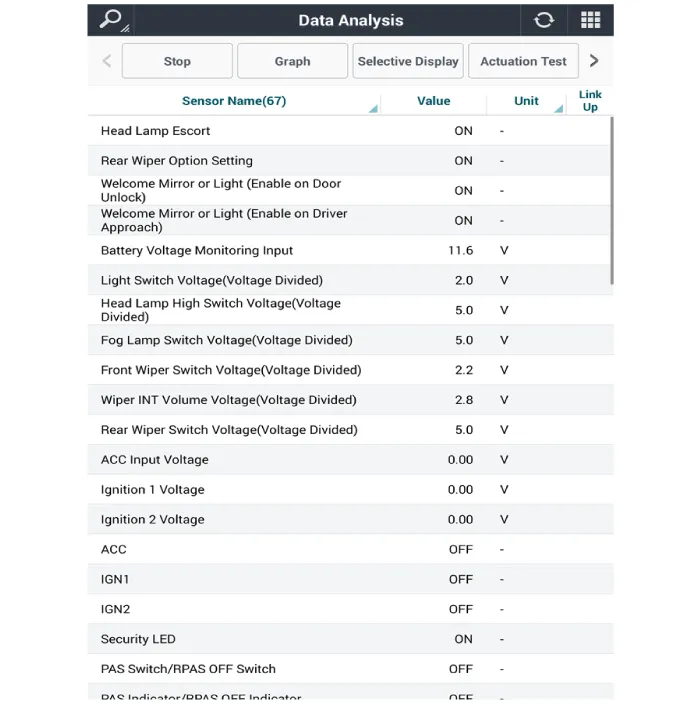

If check current status, select the "Data Analysis" and "Car model".
|
| 4. |

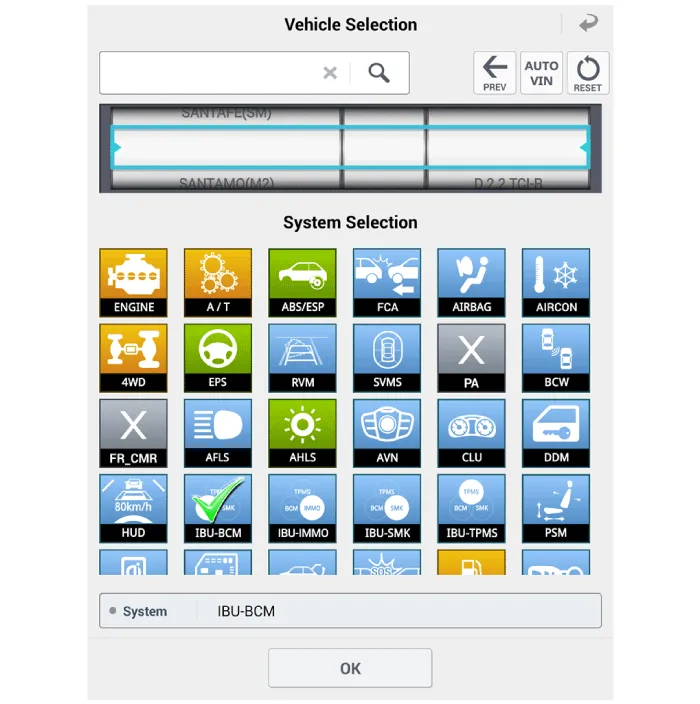

Select the 'IBU_BCM' to search the current state of the input/output
data.
|
