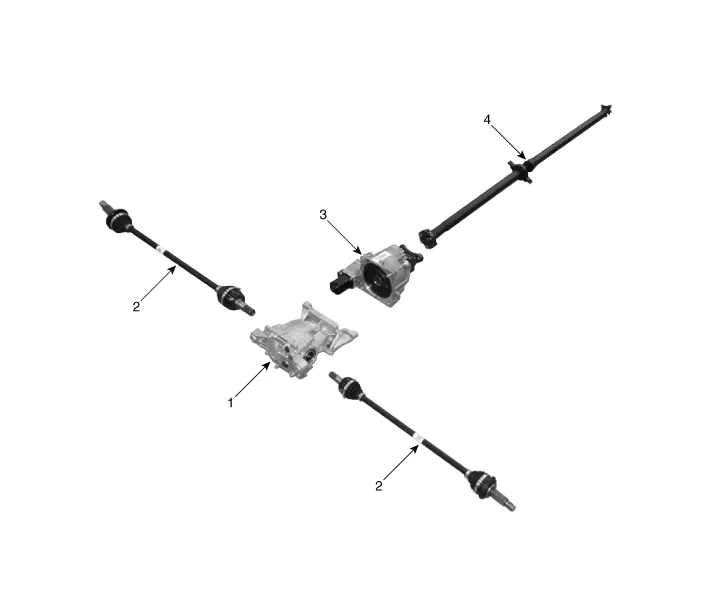

Components Location

Hyundai Palisade. Components and components location

1. Rear differential carrier assembly
2. Rear driveshaft assembly
 3. Coupling Assembly
4. Propeller shaft assembly

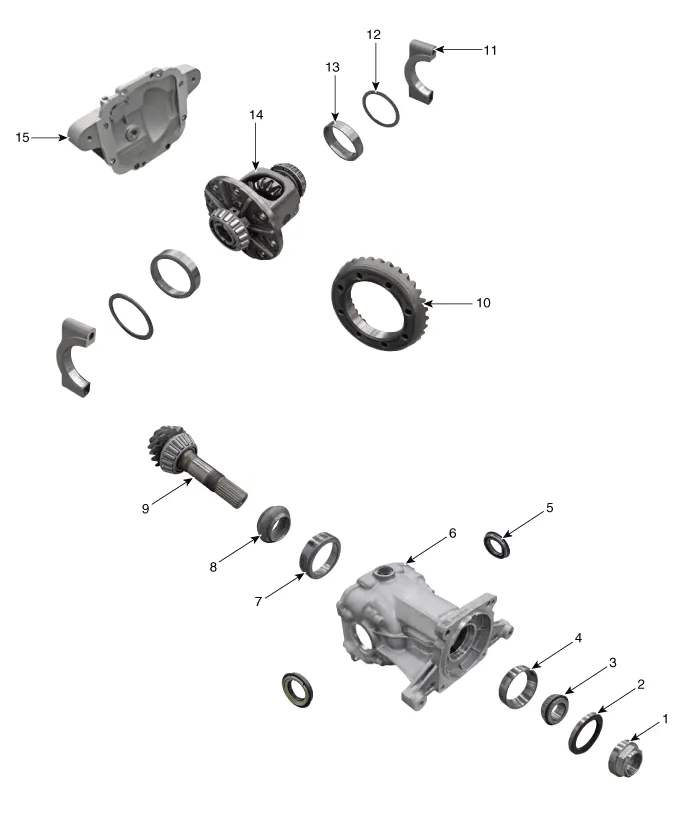

Components

Hyundai Palisade. Components and components location

1. Pinion lock nut
2. Pinion oil seal
3. Pinion front bearing
4. Pinion front bearing outer race
5. Differential oil seal
6. Differential case
7. Pinion rear bearing outer race
8. Pinion bearing spacer
 9. Drive gear
10. Ring gear
11. Bearing cap
12. Spacer
13. Side bearing outer race
14. Gear carrier assembly
15. Differential rear cover.

    Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2.
