Hyundai Palisade (LX2): Cylinder Block / Components and components location
| Components |

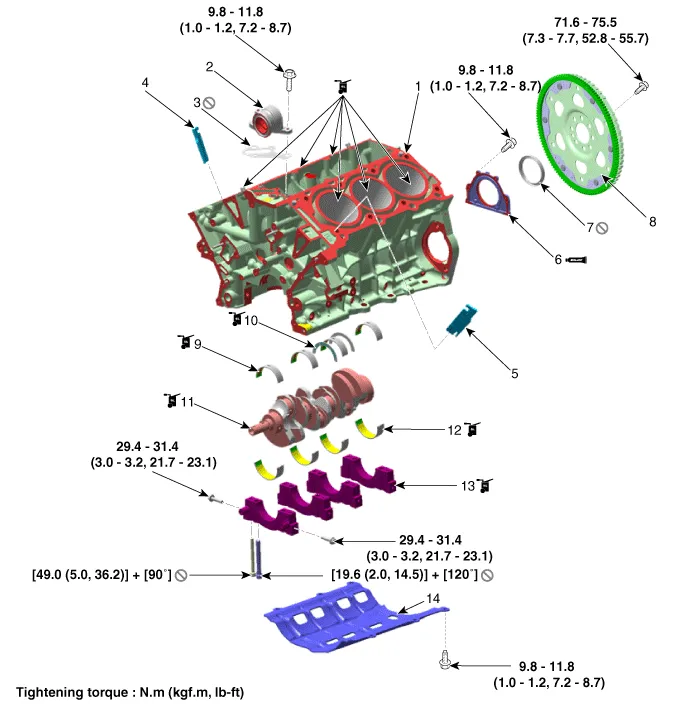

| 1. Cylinder block 2. Oil cover 3. Oil cover gasket 4. Water jacket separator #1 5. Water jacket separator #2 |
6. Rear oil seal case 7. Rear oil seal 8. Drive plate 9. Crankshaft upper bearing 10. Thrust bearing |
11. Crankshaft 12. Crankshaft lower bearing 13. Main bearing cap 14. Baffle plate |

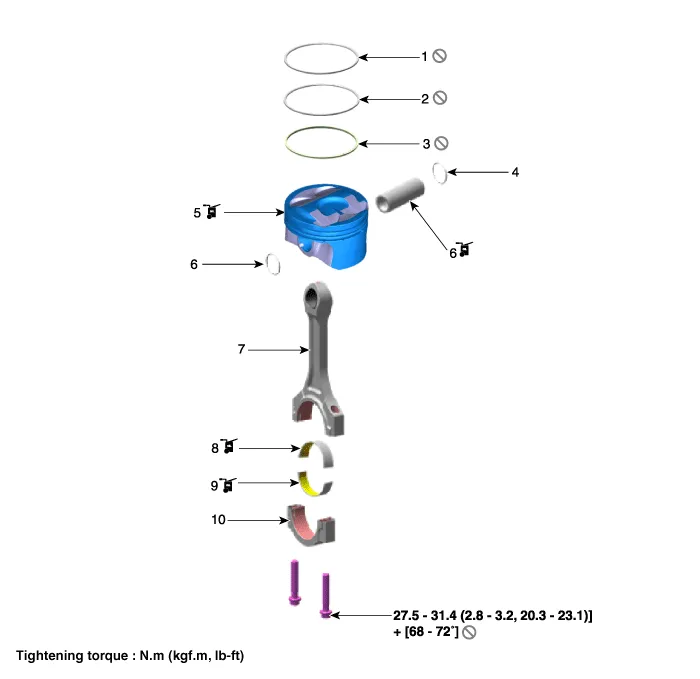

| 1. Piston ring (#1) 2. Piston ring (#2) 3. Oil ring 4. Snap ring 5. Piston |
6. Piston pin 7. Connecting rod 8. Connecting rod upper bearing 9. Connecting rod lower bearing 10. Connecting rod bearing cap |
Repair procedures Removal • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
