Hyundai Palisade (LX2): Cylinder Block / Water Jacket Separator

Repair procedures

Removal
Hyundai Palisade. Repair procedures
•
Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
1.
Remove the LH / RH cylinder head assembly and gasket.
(Refer to Cylinder Head Assembly - "Cylinder Head")
2.

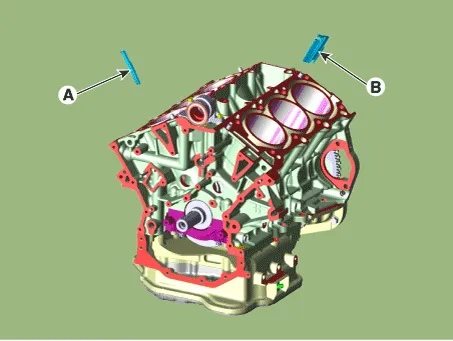

Remove the water jacket separator #1 (A), #2 (B).

Hyundai Palisade. Repair procedures

Installation
1.
Install the water jacket separator #1 (A), #2 (B).

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
•

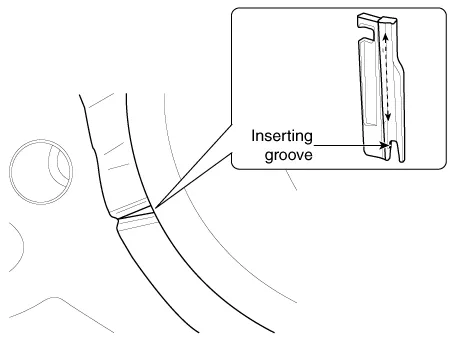

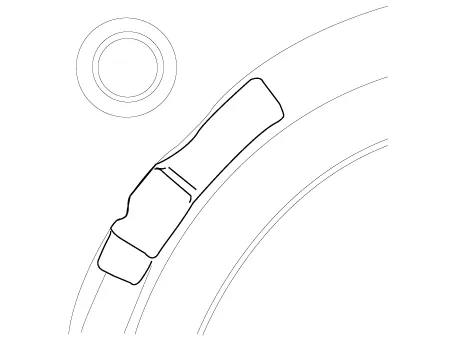

Insert the separator by aligning it with the block inner side protrusion. It must be below the cylinder head installing surface.

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

2.
Install the LH / RH cylinder head assembly and gasket.
(Refer to Cylinder Head Assembly - "Cylinder Head")

    Components 1. Cylinder block 2. Oil cover 3. Oil cover gasket 4. Water jacket separator #1 5. Water jacket separator #2 6.

    Repair procedures Removal and Installation    • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
