Hyundai Palisade (LX2): Interior Trim / Center Pillar Trim

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Interior Trim / Center Pillar Trim

Components and components location

Component Location

Hyundai Palisade. Components and components location

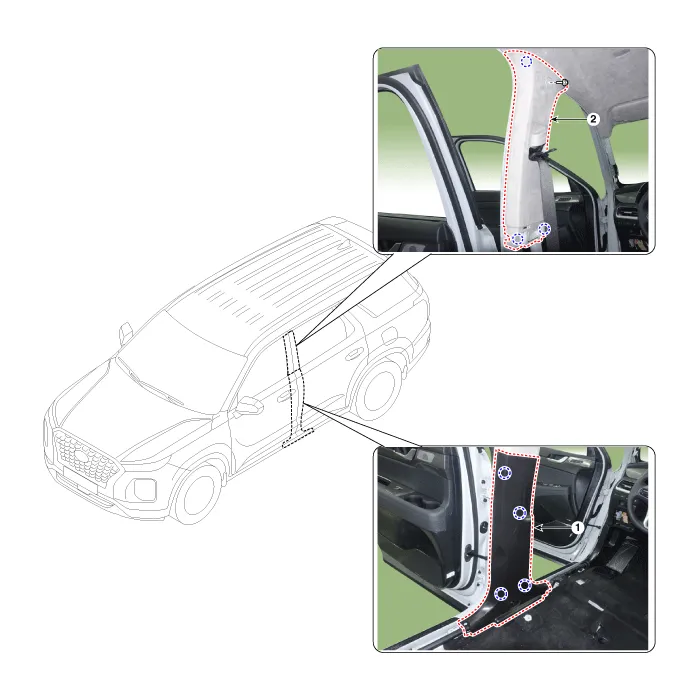

1. Center pillar lower trim
 2. Center pillar upper trim

Repair procedures

Replacement
[Center pillar lower trim]
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
Hyundai Palisade. Repair procedures
•
Take care not to bend or scratch the trim and panels.
1.
Remove the front door body side weatherstrip.
2.
Remove the rear door body side weatherstrip.
3.
Remove the front door scuff trim.
(Refer to Interior Trim - "Door Scuff Trim")
4.
Remove the rear door scuff trim.
(Refer to Interior Trim - "Rear Scuff Trim")
5.
Open the front seat belt lower cover (A) and loosen the mounting bolt.

Hyundai Palisade. Repair procedures
6.
Using a flat-tip screwdriver or remover and remove the center pillar lower trim (A).

Hyundai Palisade. Repair procedures
7.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Replace any damaged clips (or pin-type retainers).
[Center pillar upper trim]
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
Hyundai Palisade. Repair procedures
•
Take care not to bend or scratch the trim and panels.
1.
Remove the center pillar lower trim.
(Refer to Interior Trim -"Center Pillar Lower Trim")
2.

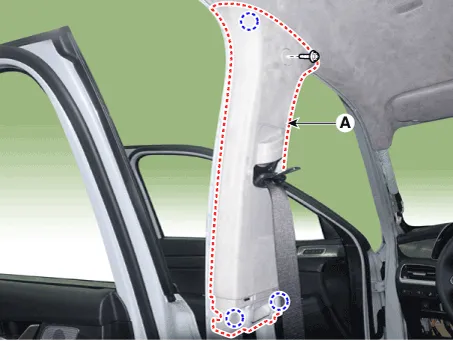

Loosen the mounting bolt and remove the center pillar upper trim (A).

Hyundai Palisade. Repair procedures
3.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Replace any damaged clips (or pin-type retainers).
