Hyundai Palisade (LX2): Audio / Audio Keyboard Assembly

Components and components location

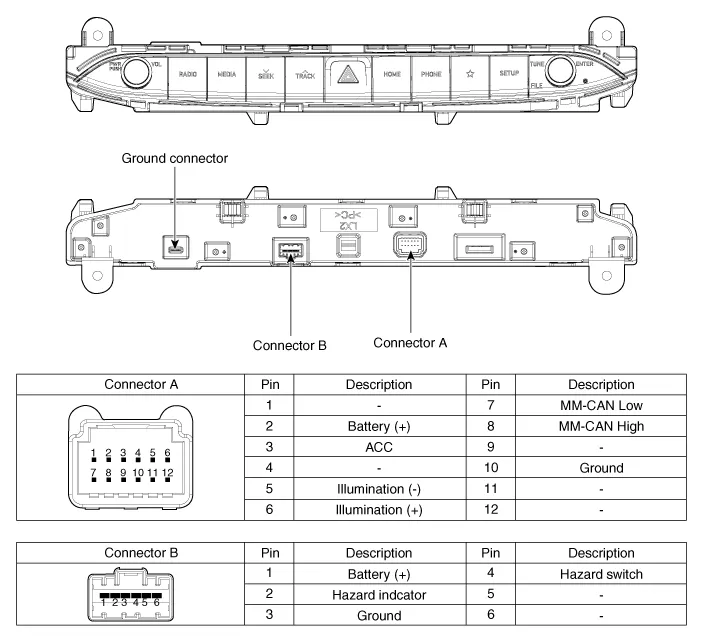

Components

Hyundai Palisade. Components and components location

Repair procedures

Removal
1.
Disconnct the negative (-) battery terminal.
2.
Remove the carsh pad garnish.
(Refer to Body - "Crash Pad Garnish")
3.

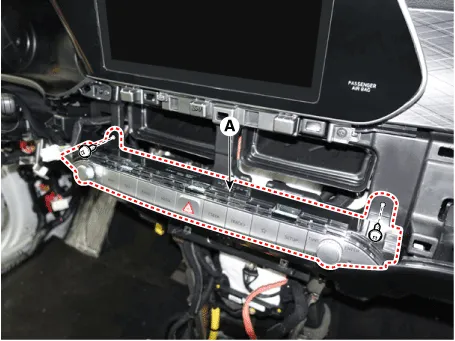

Remove the audio keyboard unit (A) after loosening mounting screws.

Hyundai Palisade. Repair procedures

4.

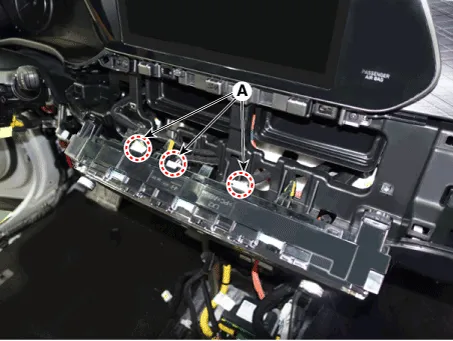

Dsiconnect the connector (A) and then remove the AVN keyboard unit.

Hyundai Palisade. Repair procedures

Installation
1.
Install the audio keyboard unit.
2.
Install the carsh pad garnish.
3.
Connect the negative (-) battery terminal.
Hyundai Palisade. Repair procedures
•
Make sure the connector are connected in properly.
•
Check the audio system.
