Hyundai Palisade: Light bulbs / License Plate Light Bulb
Replacement

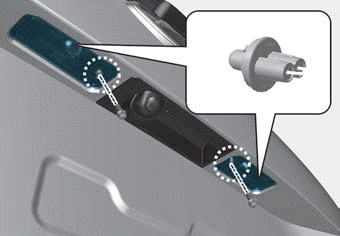

1. Loosen the lens retaining screws
with a cross-tip screwdriver.
2. Using a flat-blade screwdriver,
gently pry the lens cover from the
lamp housing.
3. Remove the socket by turning it
counterclockwise.
4. Remove the bulb by pulling it
straight out.
5. Install a new bulb.
6. Reinstall in the reverse order.
If the LED lamp (1) does not operate,
have the system checked by an
authorized HYUNDAI dealer.
The LED lamps cannot be replaced
as a single unit because it is an integrated
unit...
