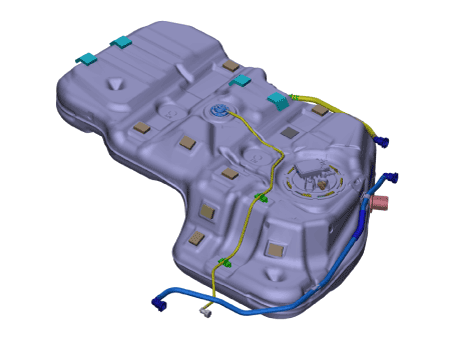

Hyundai Palisade: Fuel Delivery System / Fuel Tank

Hyundai Palisade (LX2) 2020-2024 Service Manual / Engine Control/Fuel System / Fuel Delivery System / Fuel Tank

Repair procedures
Hyundai Palisade. Repair procedures
Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
Removal
1.
Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "Release Residual Pressure in Fuel Line")
2.

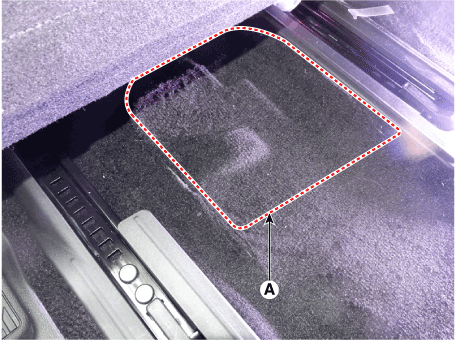

Remove the floor carpet service cover (A).

Hyundai Palisade. Repair procedures

3.

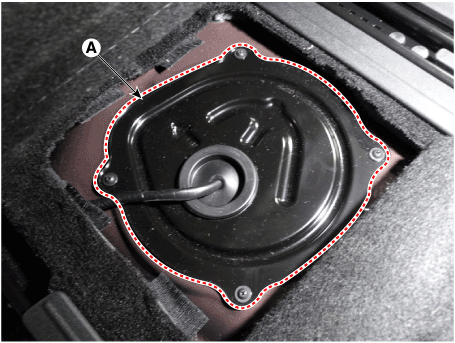

Remove the fuel pump service cover (A) after loosening the mounting screws.

Hyundai Palisade. Repair procedures

4.

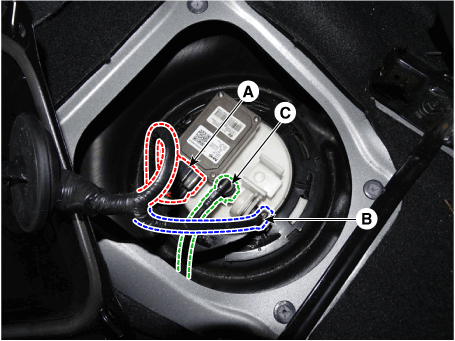

Disconnect the fuel pump control module connector (A) and fuel pressure sensor connector (B).
5.
Disconnect fuel feed tube quick-connector (C).

Hyundai Palisade. Repair procedures

6.
Lift the vehicle.
7.
Remove the propeller shaft assembly [4WD].
(Refer to Driveshaft and Axle - "Propeller shaft Assembly")
8.
Remove the coupling assembly. [4WD]
(Refer to 4 Wheel Drive (4WD) System - "Coupling Assembly")
9.
Remove the muffler assembly.
(Refer to Engine Mechanical System - "Muffler")
10.
Remove the fuel tank protect (A) after loosening the mounting screws.

Hyundai Palisade. Repair procedures

11.

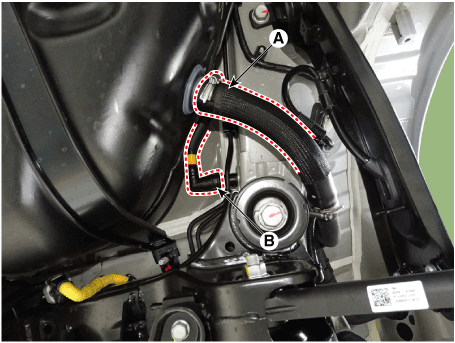

Disconnect the fuel filler hose (A).
12.
Disconnect the leveling hose (B).

Hyundai Palisade. Repair procedures

13.

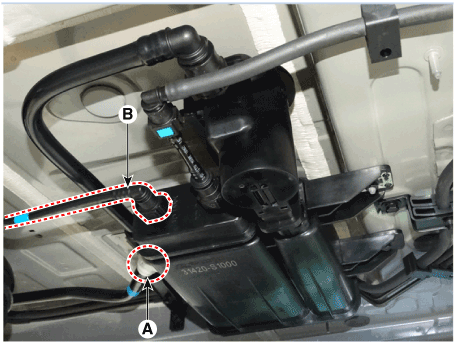

ventilation hose quick-connector (A).
14.
Disconnect the vapor hose quick-connector (B).

Hyundai Palisade. Repair procedures

15.

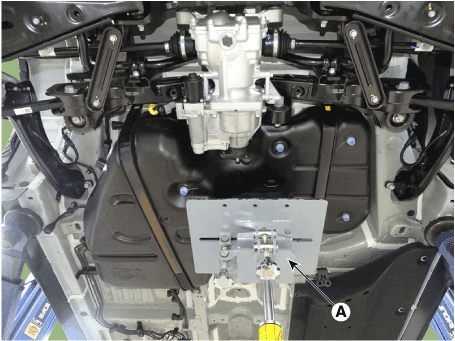

Support the fuel tank with a jack (A).

Hyundai Palisade. Repair procedures

16.

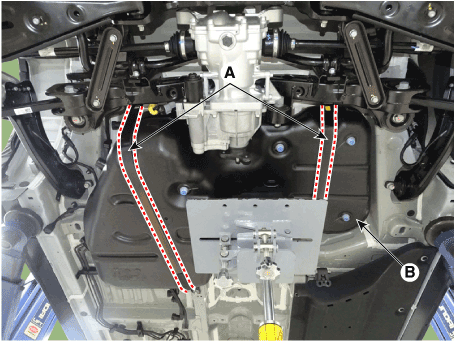

Remove the fuel tank band (A) after removing the installation bolts. And then, remove the fuel tank (B).

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Installation
1.
Install in the reverse order of removal.
Fuel tank band mounting nut :
39.2 - 54.0 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)
