Hyundai Palisade: Fuel Delivery System / Fuel Sender

Hyundai Palisade (LX2) 2020-2024 Service Manual / Engine Control/Fuel System / Fuel Delivery System / Fuel Sender

Repair procedures
Removal
1.
Remove the fuel pump.
(Refer to Fuel Delivery System - "Fuel Pump")
2.
Disconnect the fuel sender connector (A).

Hyundai Palisade. Repair procedures

3.

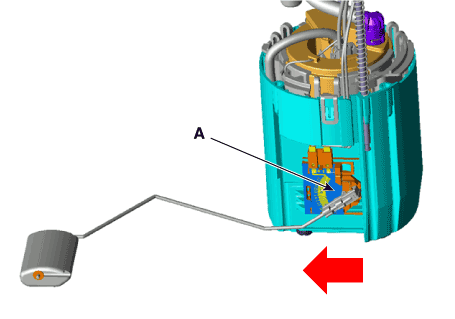

Remove the fuel sender (A) in the direction of an arrow.

Hyundai Palisade. Repair procedures

Installation
1.
Install in the reverse order of removal.
