Hyundai Palisade (LX2): Fuel Delivery System / Fuel Pump Motor

Hyundai Palisade (LX2) 2020-2026 Service Manual / Engine Control/Fuel System / Fuel Delivery System / Fuel Pump Motor

Repair procedures

Removal
1.
Remove the fuel pump.
(Refer to Fuel Delivery System - "Fuel Pump")
2.

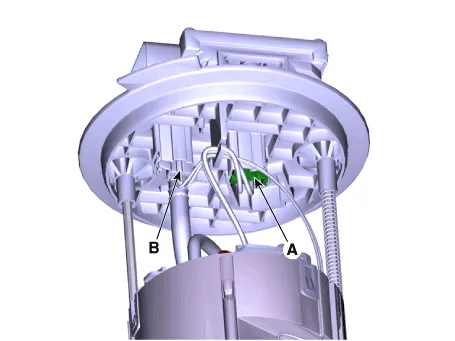

Disconnect the electric pump wiring connector (A), and the fuel sender connector (B).

Hyundai Palisade. Repair procedures
3.

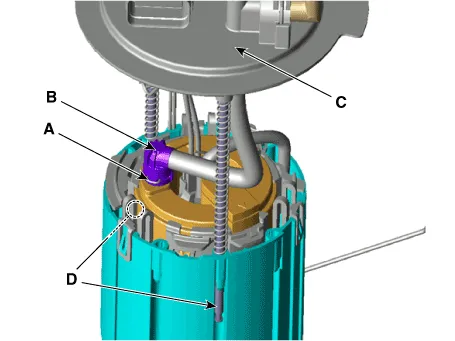

Remove the fixing clip (A), and then disconnect the feed tube (B).
4.
Remove the head assembly (C) after releasing the cushion fixing clip (D).

Hyundai Palisade. Repair procedures
5.

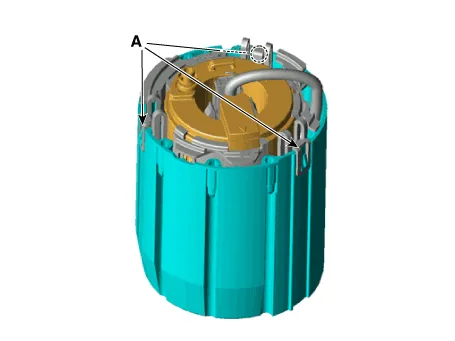

Remove the reservoir-cup after releasing the fixing hook (A).

Hyundai Palisade. Repair procedures
6.

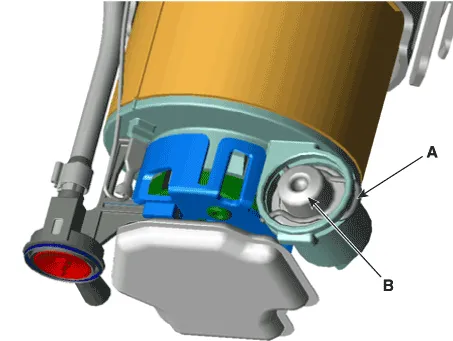

Remove the fuel pressure regulator fixing clip (A).
7.
Remove the fuel pressure regulator (B) from the fuel filter.

Hyundai Palisade. Repair procedures
8.

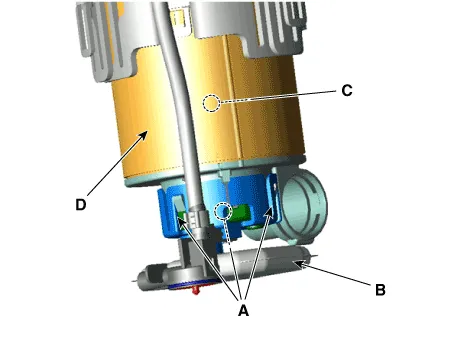

Remove the pre-filter (B) after releasing the fixing hooks (A).
9.

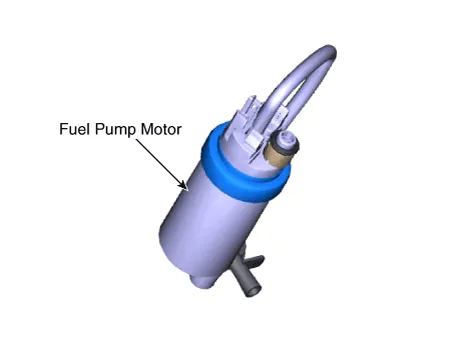

Remove the fuel pump motor (C) from the fuel filter (D) by pulling it in down direction.

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
Installation
1.
Install in the reverse order of removal.
