Hyundai Palisade: Front Seat / Front Seat Shield Outer Cover
Components and components location
![Hyundai Palisade. Components and components location](images/front_seat_shield_outer_cover-845/390/hyundai_palisade__components_and_components_location_3040.gif)

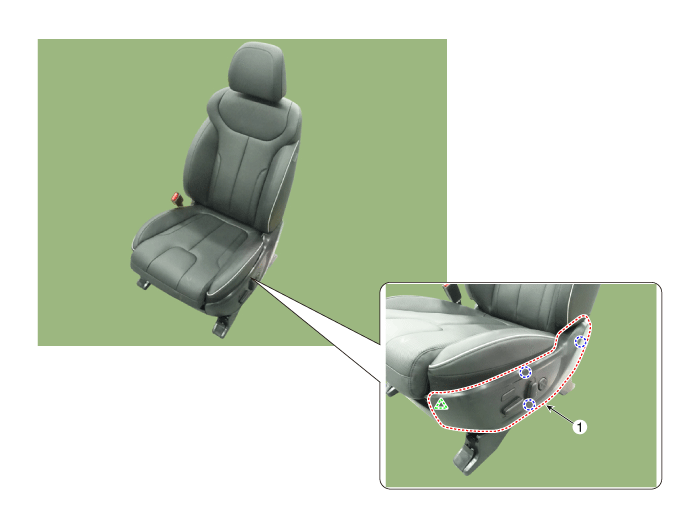

1. Front seat shield outer cover
|
|
Repair procedures
• |
When removing with a flat-tip screwdriver or remover, wrap protective
tape around the tools to prevent damage to components.
|
• |
Put on gloves to prevent hand injuries.
|
|
1. |
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
|
2. |

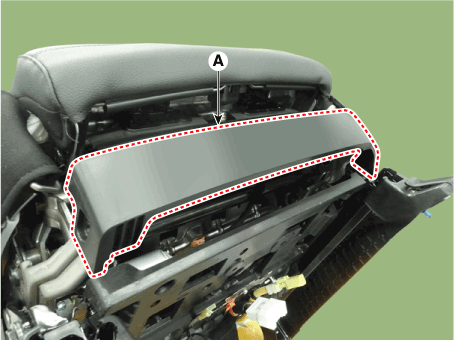

Loosen the mounting screws and remove the front seat shield front cover
(A).
![Hyundai Palisade. Repair procedures](images/front_seat_shield_outer_cover-845/390/hyundai_palisade__repair_procedures_3042.gif)
|
3. |
Remove the front seat outer shield cover.
1) |

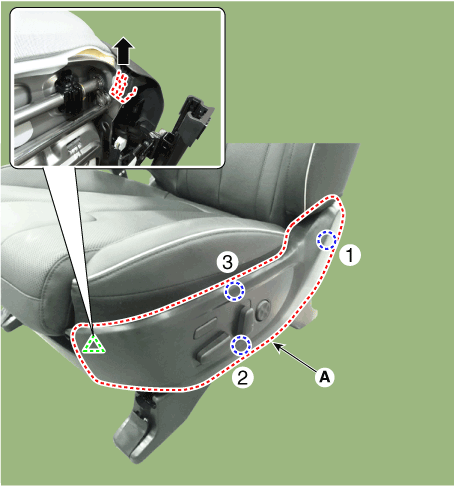

Using a screwdriver or remover and remove the rear hook ①.
|
2) |
Remove the lower hook ② by pulling it aside
|
3) |
Remove the upper steel clip ② and the hook ③ by pulling them
aside.
|
4) |
Remove the front seat outer shield cover (A) by pulling it forward
as shown by the arrow.
• |
Front Seat Outer Shield When removing the cover,
pay attention to the removal order and direction.
|
• |
Be careful not to damage the hooks and brackets.
|
|
|
![Hyundai Palisade. Repair procedures](images/front_seat_shield_outer_cover-845/390/hyundai_palisade__repair_procedures_3044.gif)
|
4. |

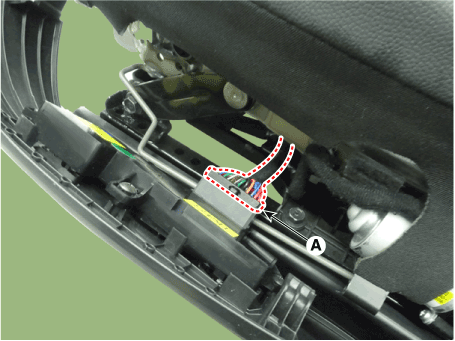

Press the lock pin and separate the front seat power switch connector
(A).
![Hyundai Palisade. Repair procedures](images/front_seat_shield_outer_cover-845/390/hyundai_palisade__repair_procedures_3045.gif)
|
5. |
To install, reverse removal procedure.
•
|
Make sure the connector is plugged in properly.
|
•
|
Replace any damaged clips (or pin-type retainers).
|
|
|
