Hyundai Palisade (LX2): Front Seat / Front Seat Shield Inner Cover

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Shield Inner Cover

Components and components location

Component Location

Hyundai Palisade. Components and components location

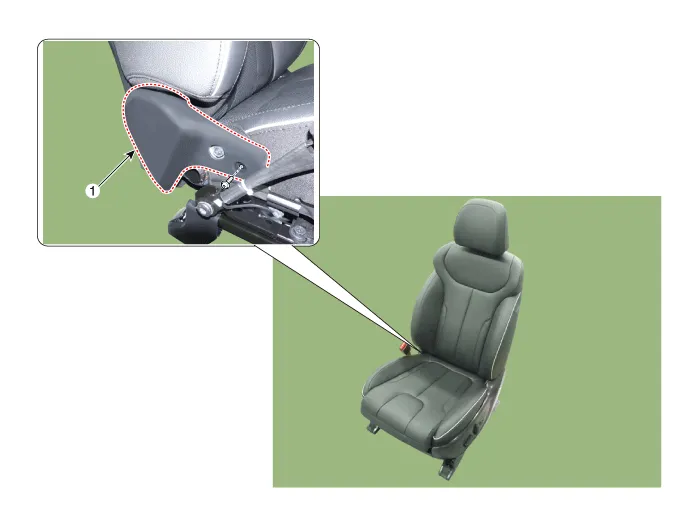

1. Front seat shield inner cover

Repair procedures

Replacement
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.

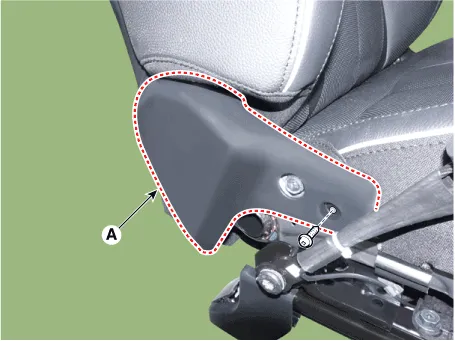

Loosen the mounting screws and remove the front seat shield inner cover (A).

Hyundai Palisade. Repair procedures
3.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Replace any damaged clips (or pin-type retainers).
