Hyundai Palisade: Body Side Molding / Fender Garnish

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Body Side Molding / Fender Garnish

Repair procedures

Replacement

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Put on gloves to prevent hand injuries.

•	Take care not to scratch the body surface.

1.	Remove the front wheel guard. (Refer to Body Side Molding - "Front Wheel Guard")

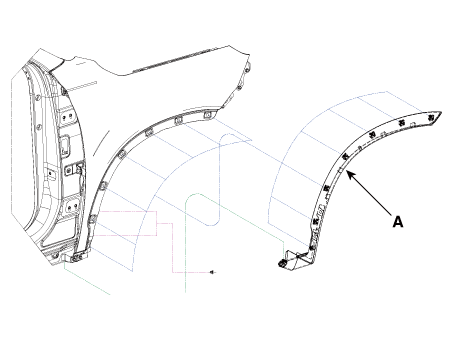

2.	Using a flat-tip screwdriver or remover and remove the fender garnish (A).

To install, reverse removal procedure.

•	Replace any damaged clips (or pin-type retainers).
