Hyundai Palisade (LX2): Body Side Molding / Quarter Garnish

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Body Side Molding / Quarter Garnish

Repair procedures

Replacement
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
Hyundai Palisade. Repair procedures
•
Take care not to scratch the body surface.
1.

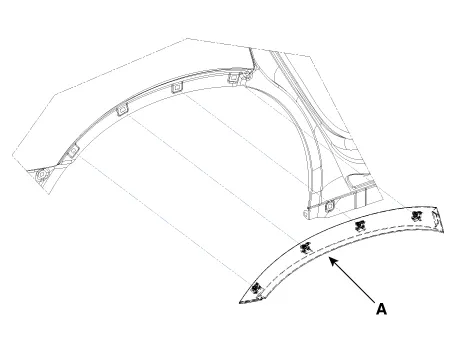

Using a flat-tip screwdriver or remover and remove the quarter garnish (A).

Hyundai Palisade. Repair procedures
2.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Replace any damaged clips (or pin-type retainers).

    Repair procedures Replacement    • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

    Repair procedures Replacement    • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
