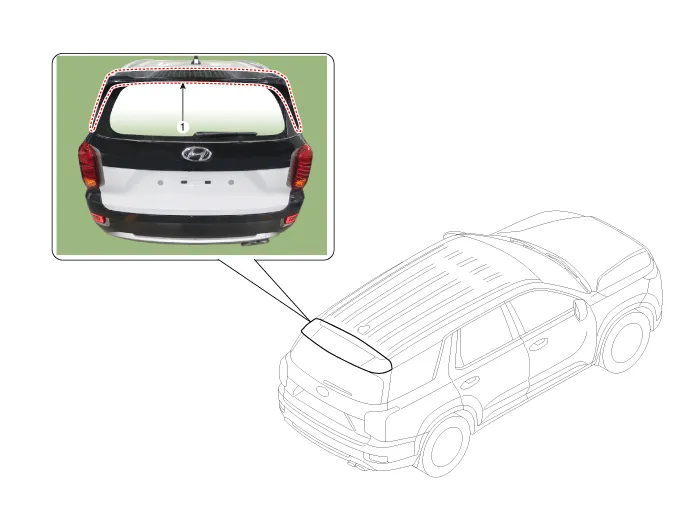

1. Rear spoiler

Repair procedures

Replacement

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Put on gloves to prevent hand injuries.

1.	Remove the tailgate upper trim. (Refer to Tailgate - "Tailgate Trim")

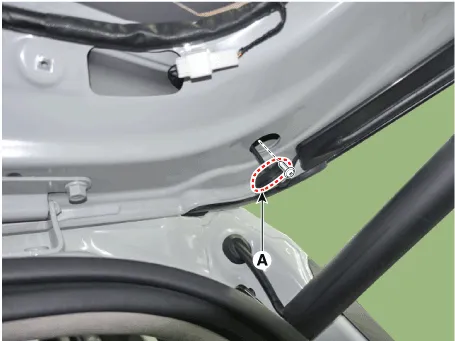

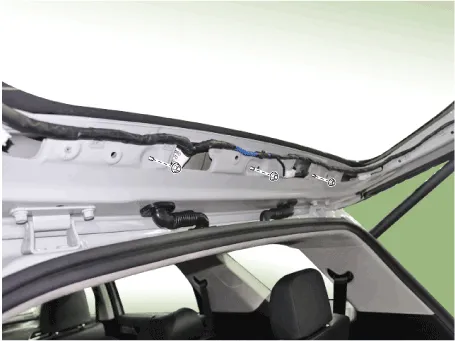

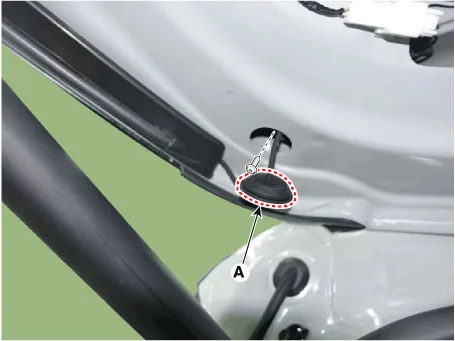

2.	Remove the rear spoiler plug hole (A) and loosen the mounting nuts. [LH] [RH]

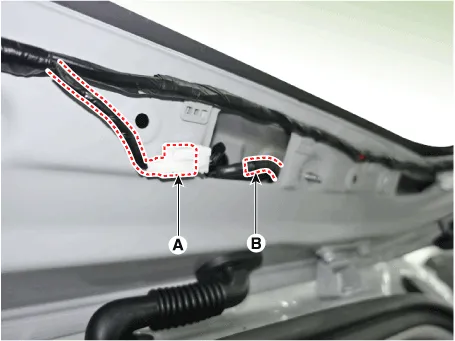

3.	Separate the rear stop lamp connector (A) and rear washer nozzle (B).

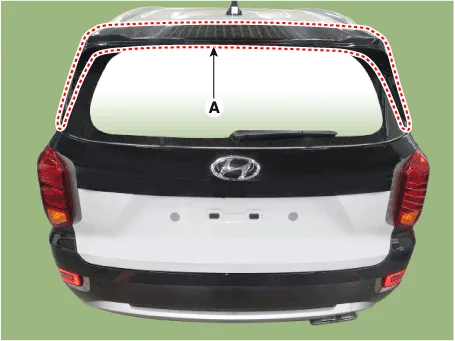

Loosen the mounting nuts and remove the rear spoiler (A).

Tightening torque :

2.9 - 3.9 N.m (0.3 - 0.4 kgf.m, 2.2 - 2.9 lb-ft)

Hyundai Palisade. Repair procedures

To install, reverse removal procedure.

•	Make sure the connector is connected properly.

•	Replace any damaged clips (or pin-type retainers).
