Repair procedures
Removal
Hyundai Palisade. Repair procedures
•
Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
Hyundai Palisade. Repair procedures
•
Use fender covers to avoid damaging painted surfaces.
•
To avoid damage, unplug the wiring connectors carefully while holding the connector portion.
Hyundai Palisade. Repair procedures
•
Mark all wiring and hoses to avoid misconnection.
1.
Disconnect the battery negative terminal.
2.
Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "Engine Cover")
3.
Remove the air duct.
(Refer to Intake and Exhaust System - "Air Cleaner")
4.
Disconnect the battery positive terminal.
5.
Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "Air Cleaner")
6.
Remove the battery and battery tray.
(Refer to Engine Electrical System - "Battery")
7.
Remove the engine control module (ECM).
(Refer to Engine Control / Fuel System - "Engine Control Module (ECM)")
8.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")
9.
Drain the engine coolant.
(Refer to Cooling System - "Coolant")

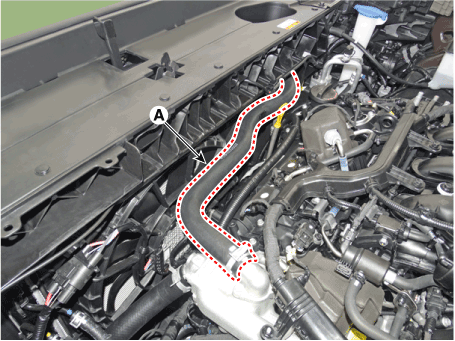

10.
Disconnect the radiator upper hose (A).

Hyundai Palisade. Repair procedures

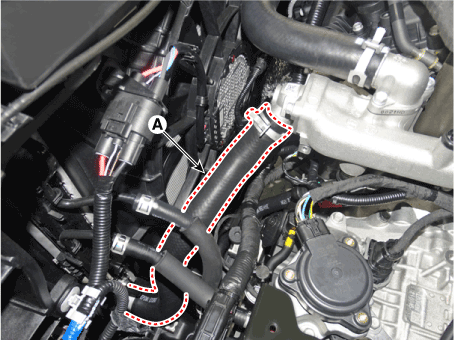

11.
Disconnect the radiator lower hose (A).

Hyundai Palisade. Repair procedures
12.
Disconnect the brake booster vacuum hose (A).

Hyundai Palisade. Repair procedures
13.

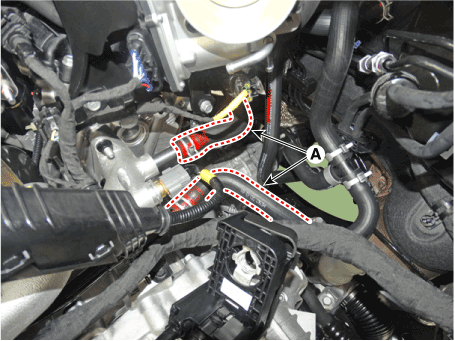

Disconnect the heater hoses (A).

Hyundai Palisade. Repair procedures
14.

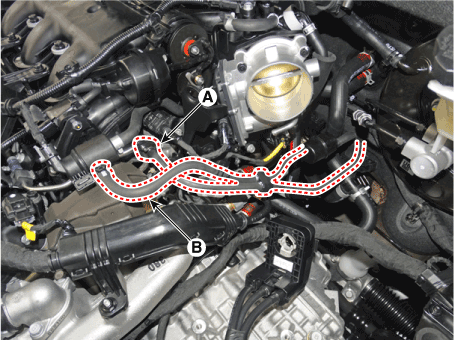

Disconnect the fuel hose (A) and the purge control solenoid valve (PCSV) hose (B).
Tightening torque :
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

Hyundai Palisade. Repair procedures
15.
Recover the refrigerant and then remove the high pressure pipe and low pressure pipe.
(Refer to Heating, Ventilation Air conditioning - "Compressor")
16.
Remove the engine wiring connector and harness.
(1)

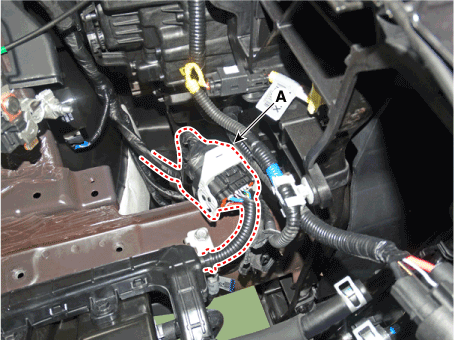

Disconnect the front connector (A).

Hyundai Palisade. Repair procedures

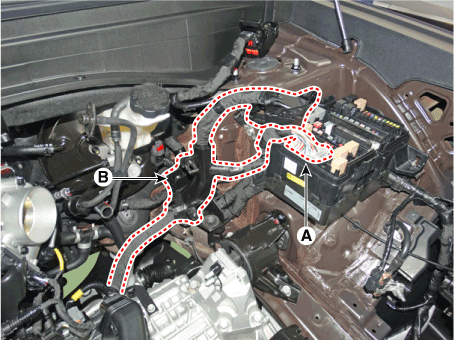

(2)
Disconnect the fuse box wiring cable (A).
(3)
Remove the battery wiring protector (B).

Hyundai Palisade. Repair procedures

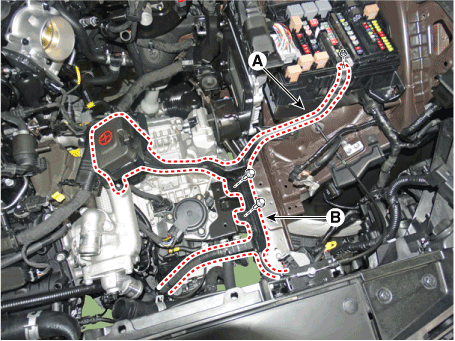

(4)
Disconnect the fuse box main wiring connector (A).
(5)
Remove the main wiring protector (B).

Hyundai Palisade. Repair procedures
17.
Disconnect the ATF cooler hoses (A).

Hyundai Palisade. Repair procedures
18.
Remove the roll rod bracket (A).
Tightening torque
Bolt (B) : 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)
Bolts (C) : 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Hyundai Palisade. Repair procedures
19.
Remove the roll rod mounting support bracket (A).
Tightening torque :
49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb.ft)

Hyundai Palisade. Repair procedures
20.
Remove the sub frame.
(Refer to Suspension System - "Sub frame")
21.
Remove the front muffler.
(Refer to Intake and Exhaust System - "Muffler")
22.
Remove the propeller shaft. [AWD type]
(Refer to Driveshaft and Axle - "Propeller Shaft Assembly")
23.
Support the engine and transaxle assembly on a lift table.

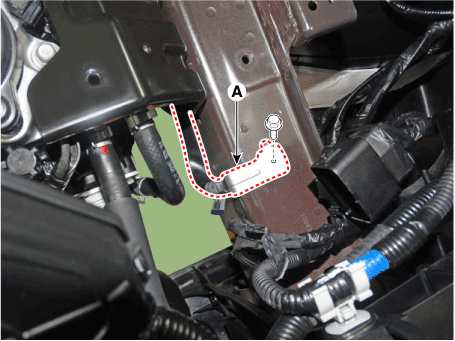

24.

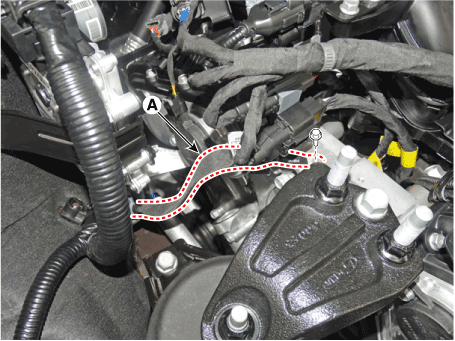

Disconnect the engine ground cable (A).
Tightening torque :
10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb.ft)

Hyundai Palisade. Repair procedures
25.

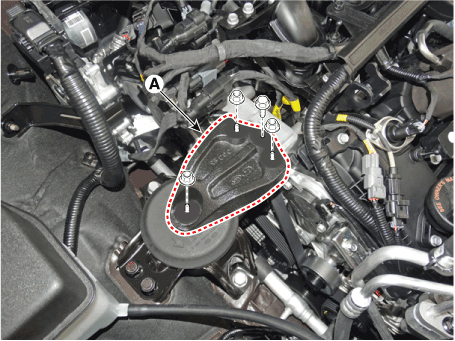

Remove the engine mounting support bracket (A).
Tightening torque :
98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

Hyundai Palisade. Repair procedures
26.

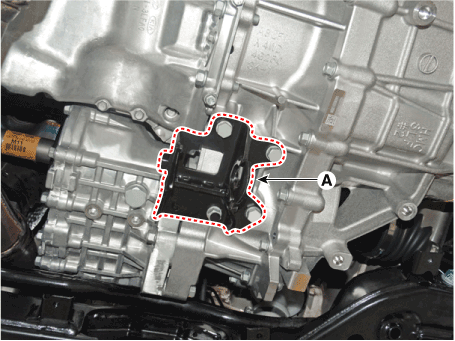

Disconnect the transaxle ground cable (A).
Tightening torque :
10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb.ft)

Hyundai Palisade. Repair procedures

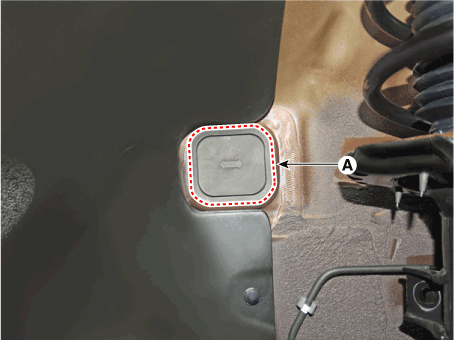

27.
Remove the service cover (A).

Hyundai Palisade. Repair procedures
28.

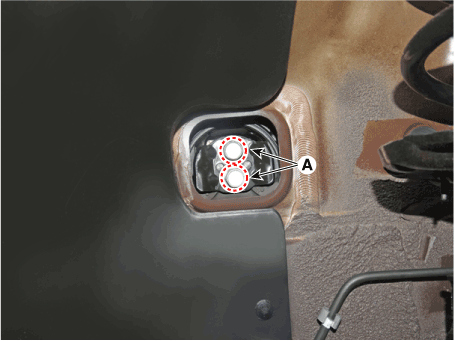

Remove the transaxle support bracket mounting bolts (A).
Tightening torque :
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Hyundai Palisade. Repair procedures
29.

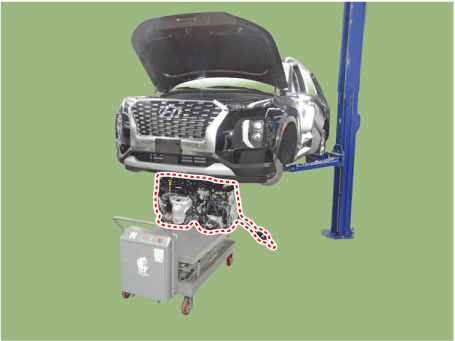

Remove the engine and transaxle assembly by lifting vehicle.

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
•
Before removing the engine and transaxle assembly, make sure hoses and wire connectors are disconnected.
•
When removing the engine and transaxle assembly, be careful not to damage any surrounding parts or body components.
Installation
Installation is in the reverse order of removal.
Perform the following :
•
Adjust a shift cable.
•
Refill engine with engine oil.
•
Refill a transaxle with fluid.
•
Refill a radiator and a reservoir tank with engine coolant.
•
Place a heater control knob on "HOT" position.
•
Clean battery posts and cable terminals and assemble.
•
Inspect for fuel leakage.
–
After assemble the fuel line, turn on the ignition switch (do not operate the starter) so that the fuel pump runs for approximately two seconds and fuel line pressurizes.
–
Repeat this operation two or three times, then check for fuel leakage at any point in the fuel line.
•
Bleed air from the cooling system.
–
Start engine and let it run until it warms up. (until the radiator fan operates 3 or 4 times.)
–
Turn Off the engine and let it cool down. Check the level in the radiator, add coolant if needed. This will allow trapped air to be removed from the cooling system.
–
Put radiator cap on tightly, then run the engine again and check for leaks.
