Hyundai Palisade: Braking system / Electronic Parking Brake (EPB)

Hyundai Palisade (LX2) 2020-2025 Owner's Manual / Driving Your Vehicle / Braking system / Electronic Parking Brake (EPB)

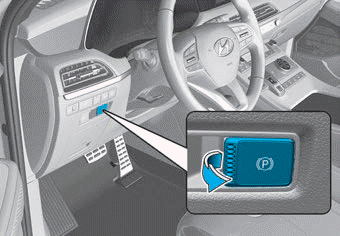

Applying the parking brake

Hyundai Palisade. (EPB)

To apply the EPB (Electronic Parking Brake):

1. Depress the brake pedal.

2. Pull up the EPB switch.

Make sure the Parking Brake i Warning Light comes on.

WARNING

To reduce the risk of SERIOUS INJURY or DEATH, do not operate the EPB while the vehicle is moving except in an emergency situation. It could damage the brake system and lead to an accident.

Disc Brakes Wear Indicator

When your brake pads are worn and new pads are required, you will hear a high pitched warning sound from your front or rear brakes. You may hear this sound come and go or it may occur whenever you depress the brake pedal...

Releasing the parking brake

To release the EPB (Electronic Parking Brake): Place the ignition switch in the ON position. Depress and hold the brake pedal. Press the EPB switch...
